Parking Brake Release Switch: Service and Repair

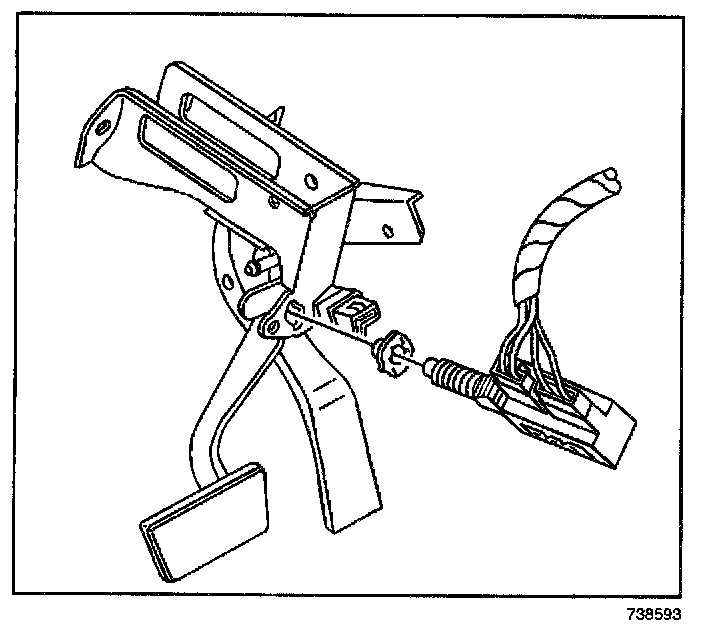

BRAKE RELEASE SWITCH REPLACEMENTREMOVAL PROCEDURE
1. Remove the left instrument panel insulator.
2. Disconnect the wiring harness connector(s) from the brake release switch.
3. Pull the brake release switch rearward in order to remove the switch from the retainer.
INSTALLATION PROCEDURE
1. Install the brake release switch retainer into the bracket (from the forward side).
2. With the brake pedal depressed, insert the switch into the retainer until the switch seats on the retainer. You may hear audible "clicks" as the ribbed portion of the switch pushes forward through the retainer.
3. Connect the wiring harness connector(s) to the brake release switch.
4. Adjust the brake release switch in the following manner:
4.1. Pull the brake pedal fully rearward against the pedal stop until you can not hear audible "clicks". The brake release switch moves in the retainer. This movement provides adjustment.
4.2. Release the brake pedal. Repeat the above steps in order to ensure that you have properly adjusted the switch.
5. Install the left instrument panel insulator.
