Muffler: Service and Repair

Muffler Replacement

Removal Procedure

1. Raise the vehicle. Refer to Vehicle Lifting.

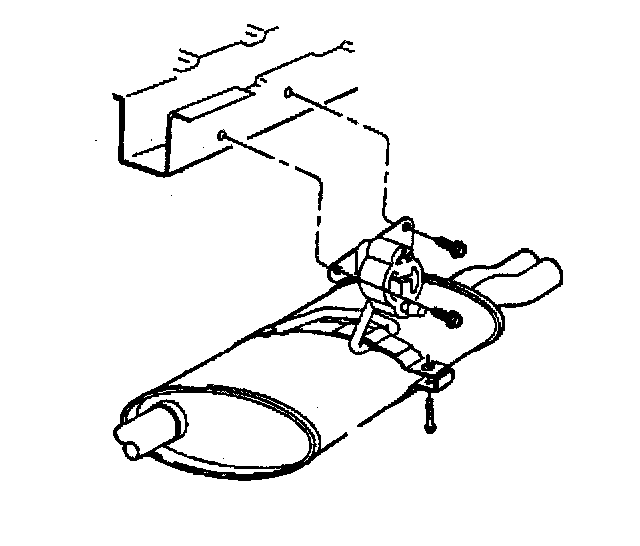

2. Cut the intermediate pipe (1) at the muffler (2) near the weld.





3. Remove the muffler hanger bolts.

Installation Procedure

Notice: Refer to Fastener Notice in Service Precautions.





1. Install the muffler hanger bolts.
Tighten the muffler hanger bolts to 16 Nm (12 ft. lbs.).





2. Weld the muffler (2) to the intermediate pipe (1).
3. Lower the vehicle.
