Steering Gear: Locations

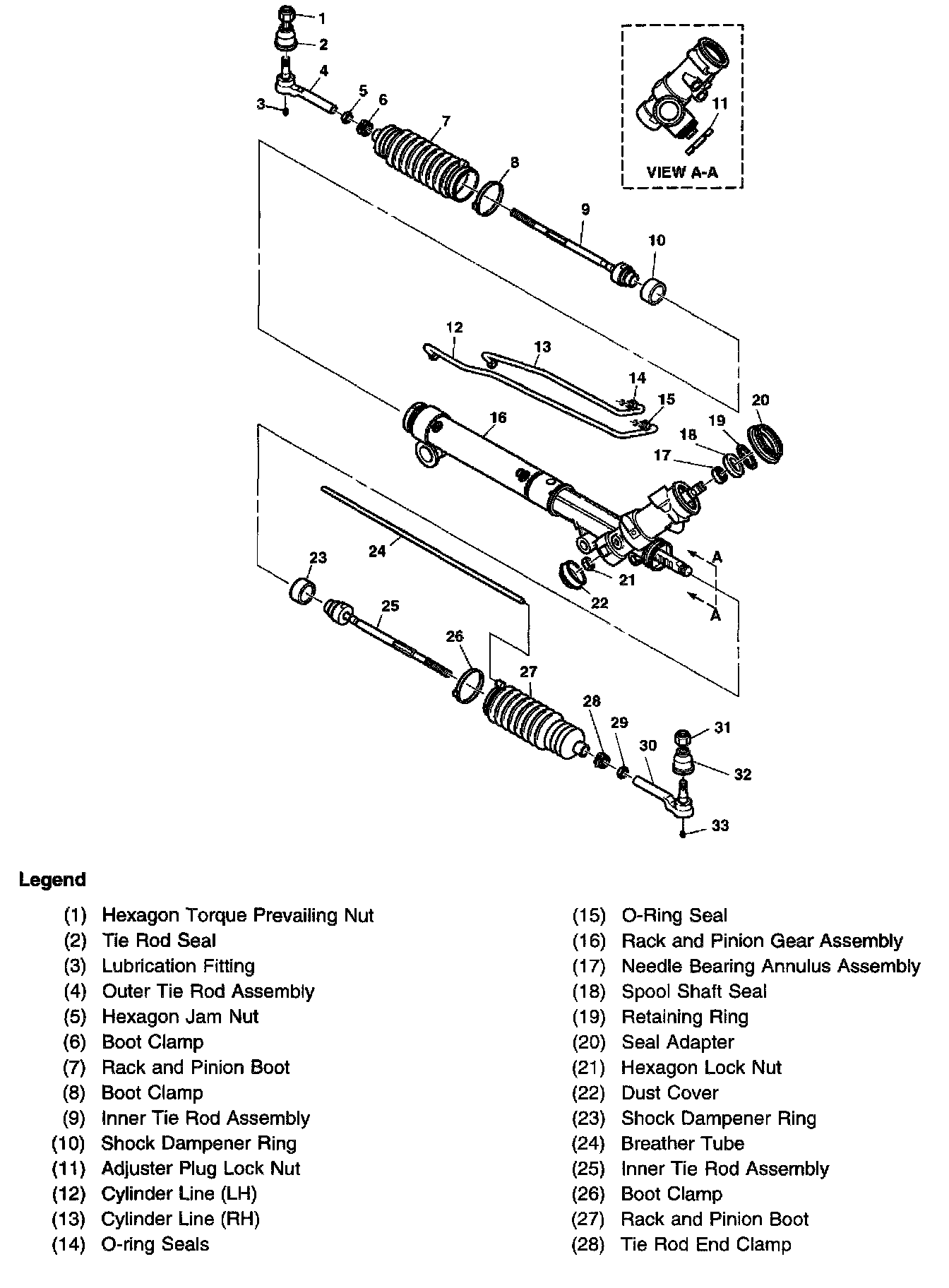

Power Steering Rack and Pinion Gear Disassembled View





Part 1 of 2

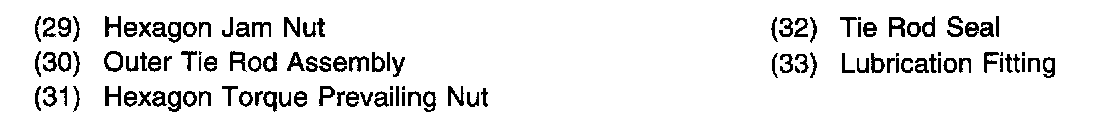

Part 2 of 2


Power Rack and Pinion Steering Gear
