Ignition Switch

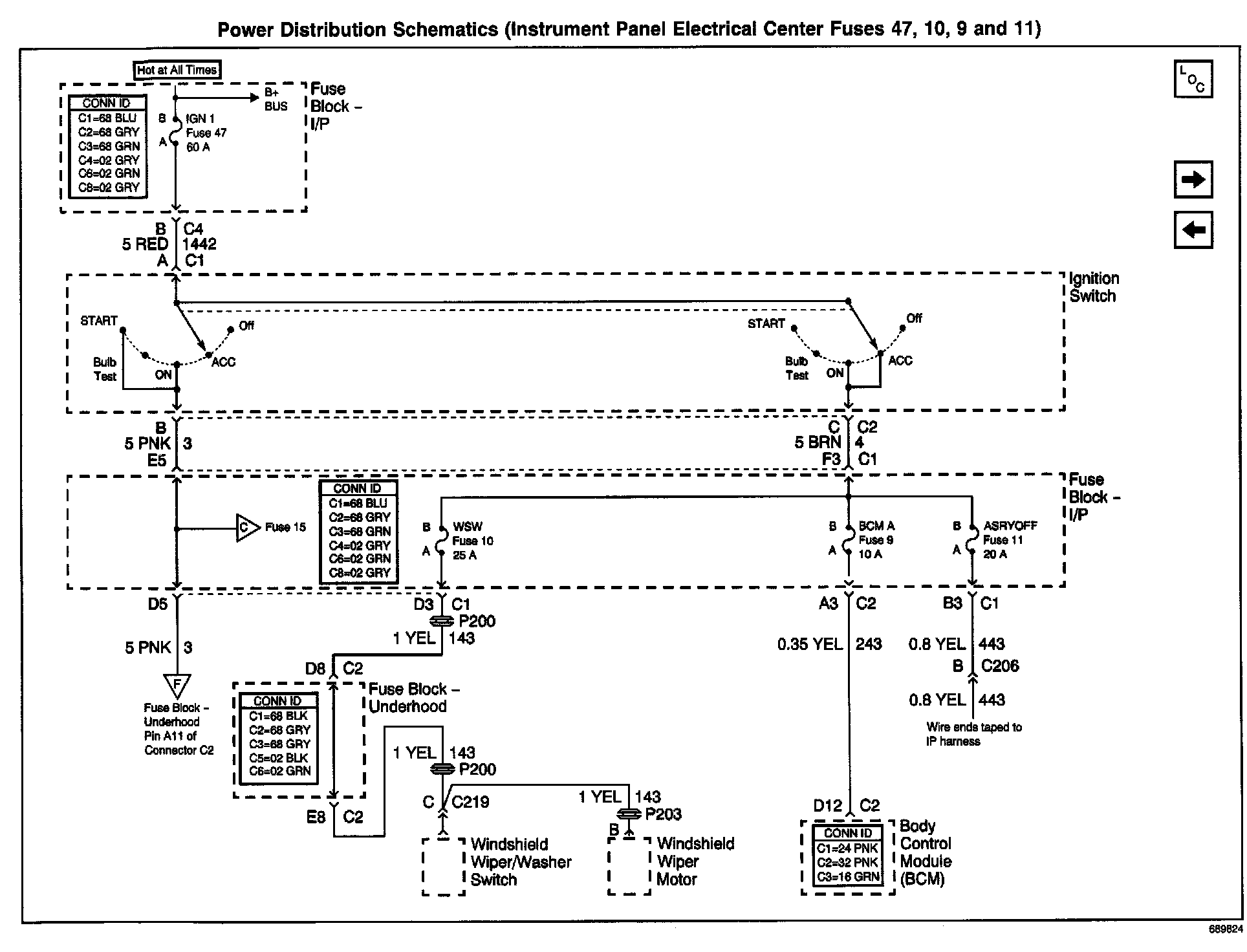

Power Distribution Schematics: Instrument Panel Electrical Center Fuses 47, 10, 9 and 11:

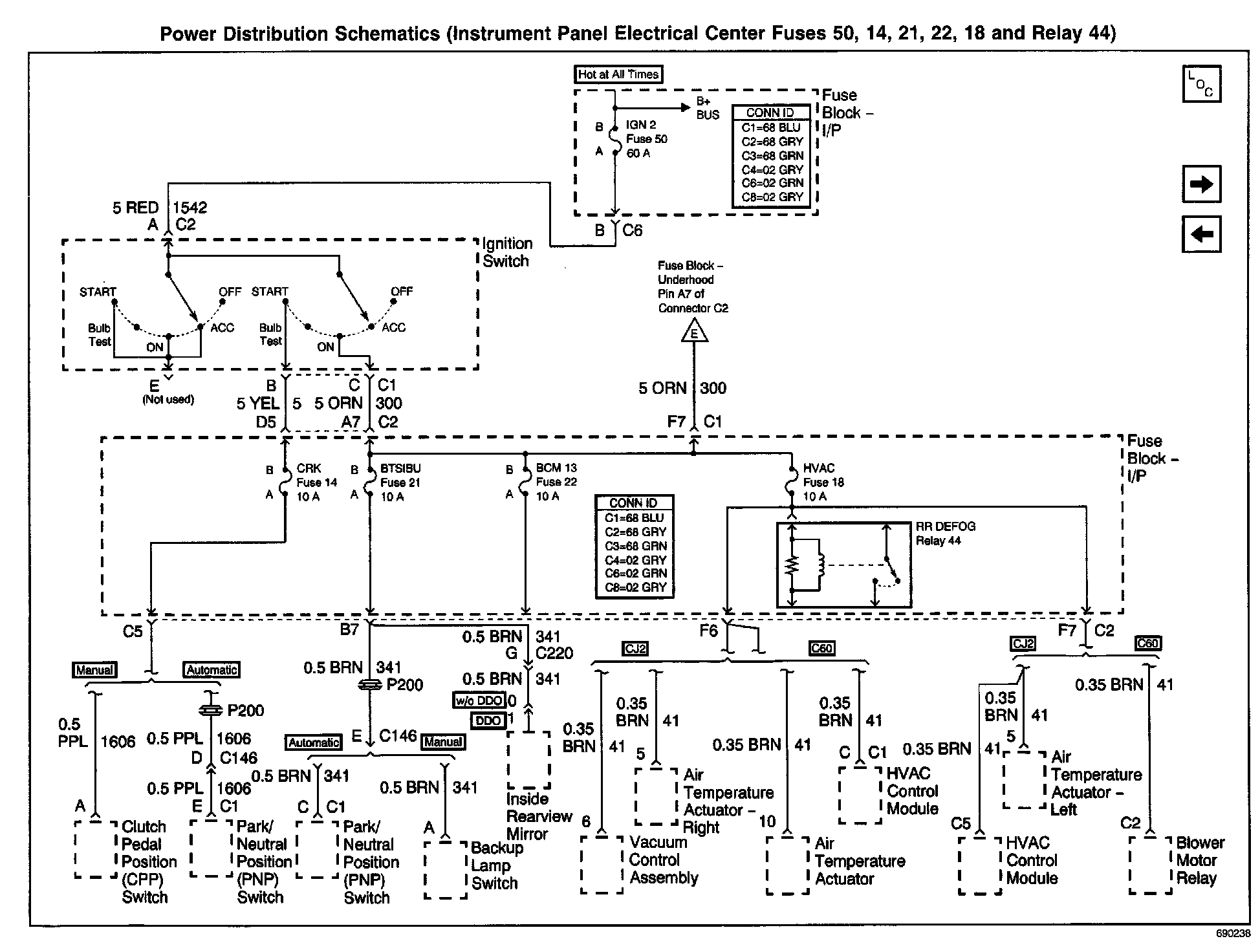

Power Distribution Schematics: Instrument Panel Electrical Center Fuses 50, 14, 21, 22, 18 And Relay 44:

"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application ID". RPO Codes
