Door Control Module - LH Door Power, Ground and DLC

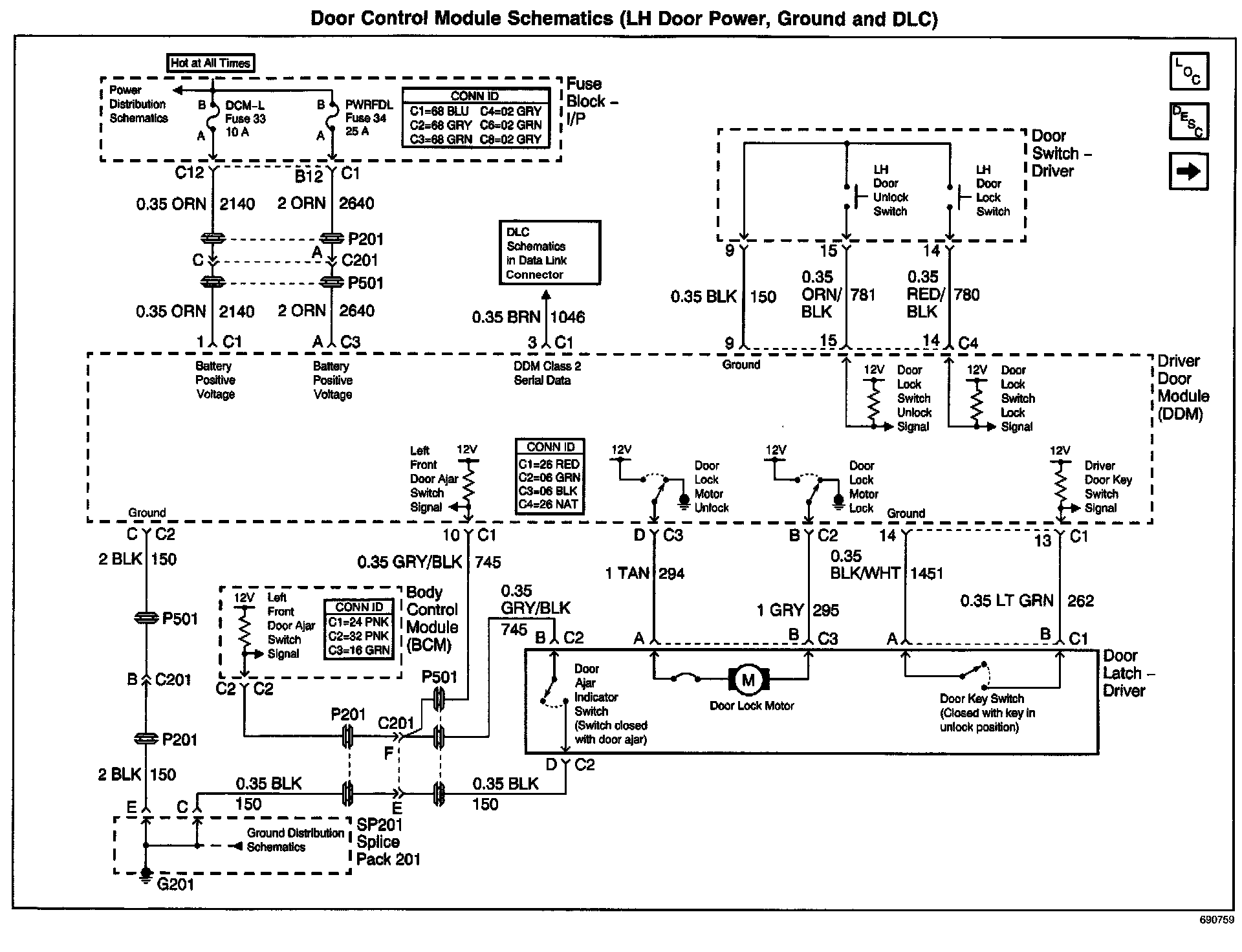

Door Control Module Schematics: LH Door Power, Ground And DLC:
