General Description

The windshield wiper/washer system consists of a permanent magnet depressed park wiper motor assembly, wiper linkage assemblies, wiper arm and blade assemblies, a washer pump mounted on a washer fluid reservoir and wiper/washer switch assembly.

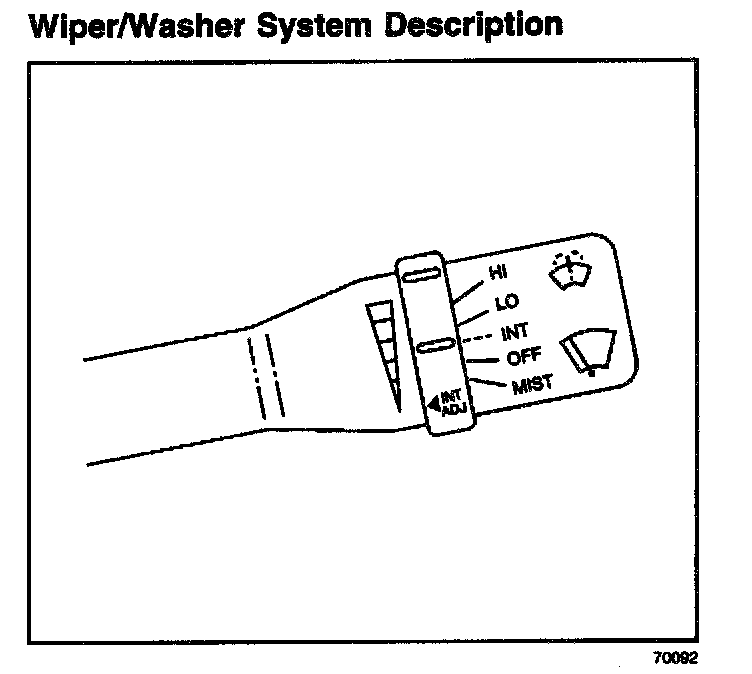

The pulse and timing functions, along with the demand wash function, are controlled by a electronic circuit board located in the wiper motor cover assembly. There are five different windshield wiper operating modes: HI, LO, INT, OFF, and MIST.

Depressed park positioning is accomplished by an external drive mechanism on the wiper motor assembly.

The Wiper/Washer System consists of the following components:
^ windshield wiper/washer switch
^ windshield wiper motor
^ windshield washer pump motor
^ windshield washer solvent level switch
^ WSW 25A fuse
