Pilot Bearing: Service and Repair

Pilot Bearing Replacement

^ Tools Required
- J 23907 Clutch Pilot Bearing Remover

Removal Procedure

Notice: DO NOT use grease under pressure to force the pilot bearing from the crankshaft or engine damage may result.





1. Remove the clutch pressure plate and clutch driven plate.

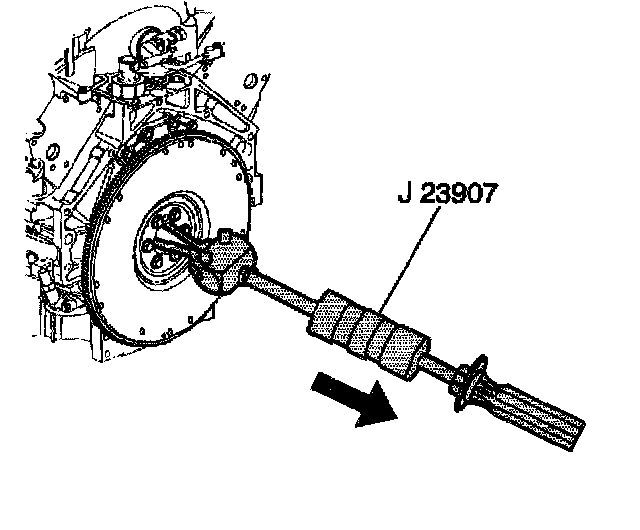

2. Using the J 23907, remove the clutch pilot bearing.

Installation Procedure

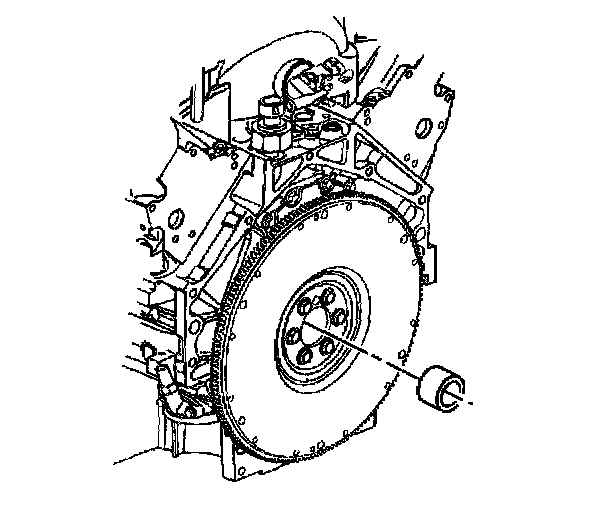

1. Using a suitable size socket, install the clutch pilot bearing.
2. Install the clutch pressure plate and clutch driven plate.
