Accelerator Pedal: Service and Repair

ACCELERATOR CONTROLS PEDAL REPLACEMENT

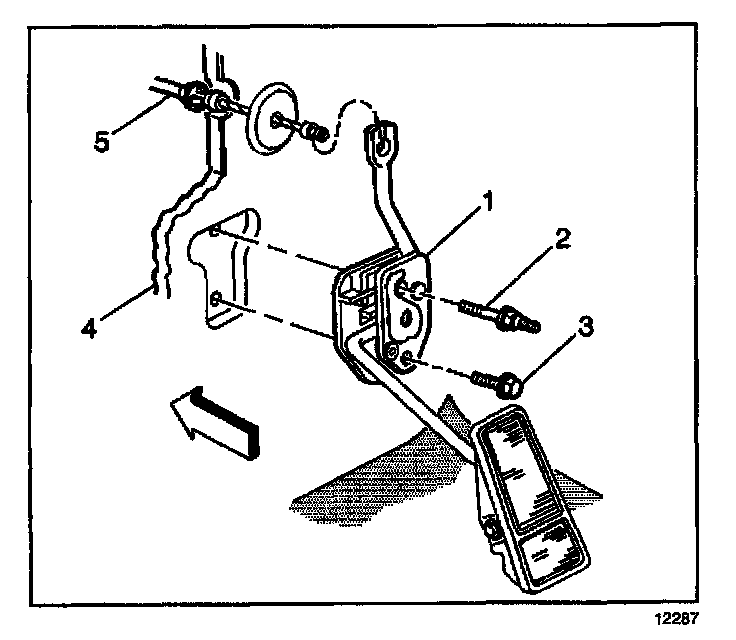

REMOVAL PROCEDURE




1. Turn OFF the ignition.
2. Remove the left instrument panel sound insulator.
3. Disconnect the accelerator cable (5) from accelerator pedal (1).
4. Remove the bolts (2) and the studs (3) holding the accelerator pedal to the bulkhead (4).
5. Remove the accelerator pedal.

INSTALLATION PROCEDURE




1. Install the accelerator pedal (1) to the bulkhead (4).

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the accelerator pedal bolt (3) and the stud (2).

Tighten
Tighten the bolts and the studs to 3 N.m (27 lb in).

3. Connect the accelerator cable (5) to accelerator pedal (1).
4. Inspect for complete throttle opening and closing positions by operating the accelerator pedal. The throttle should operate freely and without binding between full-closed and wide-open throttle. Inspect for poor carpet fit under the accelerator pedal.
5. Install the left instrument panel sound insulator.
