A/T Shift Lock Control - Disassemble

Automatic Transmission Shift Lock Control - Disassemble - Off Vehicle
1. Remove the upper and lower trim covers. Refer to Steering Column Trim Covers - Disassemble - Off Vehicle.

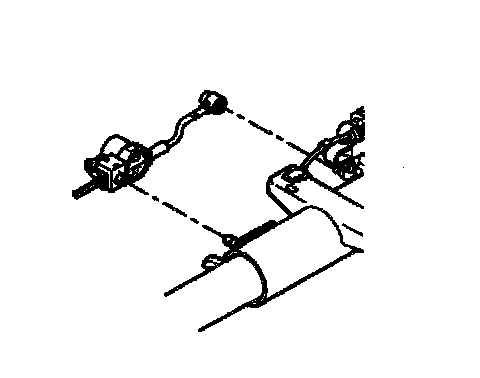

2. Remove the automatic transmission shift lock control from the steering column. Use a screwdriver to assist in the removal of the automatic transmission shift lock control from the steering column jacket assembly.
