Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>
Junction Block-Underhood (Top)
>>
Label
Label

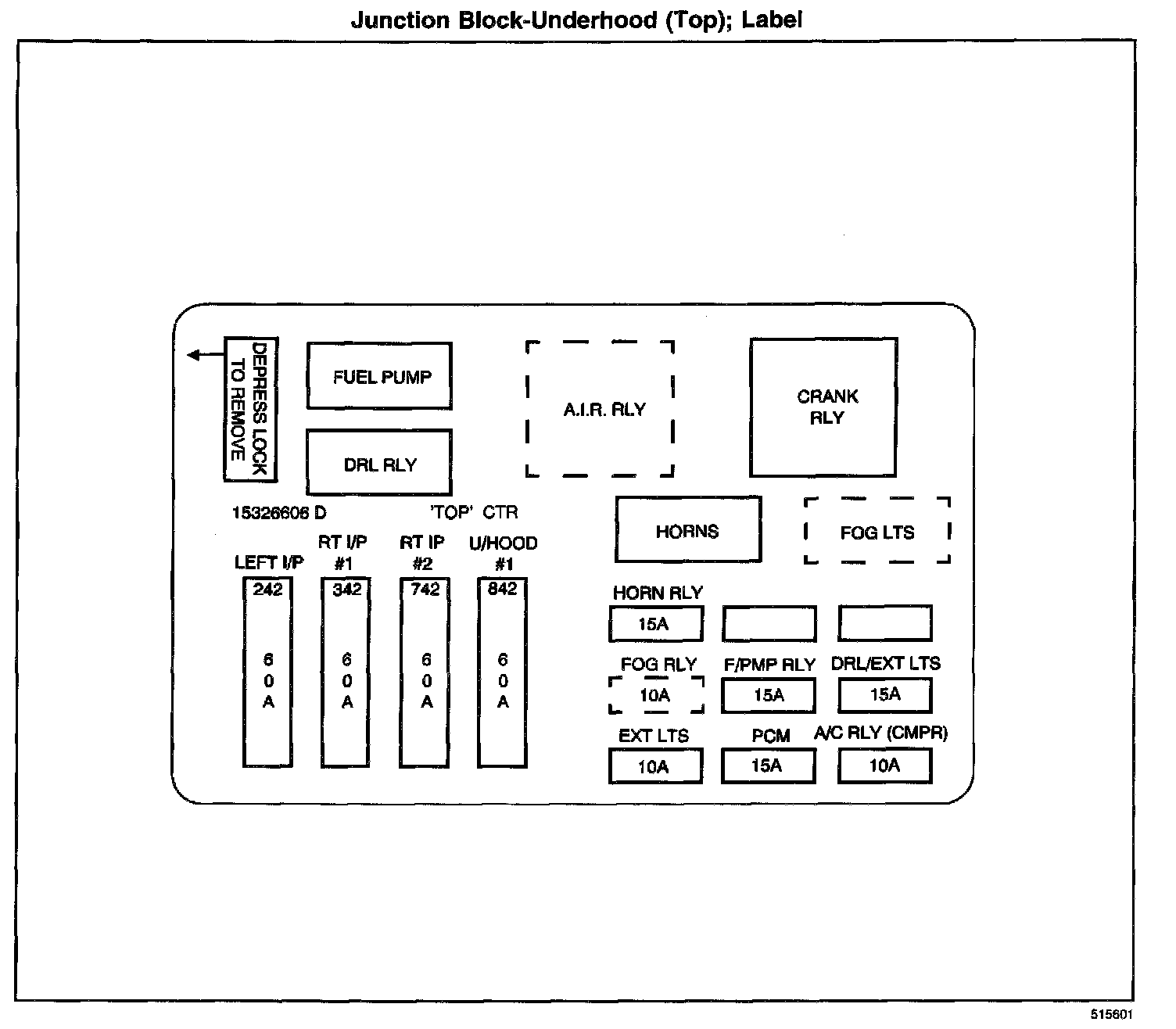

Junction Block-Underhood (Top); Label:
