Child Restraint: Service and Repair
CHILD SHOULDER BELT GUIDE REROUTER REPLACEMENT - REARTOOLS REQUIRED
J 38778 Door Trim Pad and Garnish Clip Remover
REMOVAL PROCEDURE
1. Push back the rear seat back.
2. Use J 38778 in order to remove the push-pin retainer from the child shoulder belt guide rerouter.

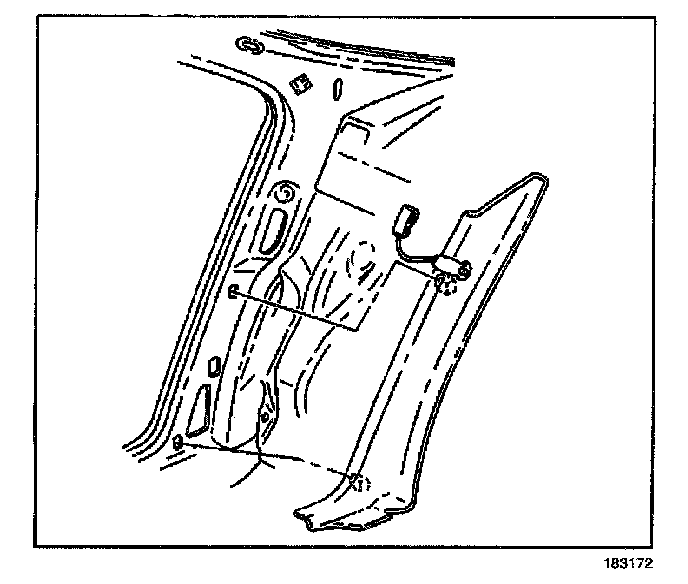

3. Remove the child shoulder belt guide rerouter from the rear quarter lower trim panel.
INSTALLATION PROCEDURE
1. Push back the rear seat back.
2. Align the child shoulder belt guide rerouter to the rear quarter lower trim panel.
3. Install the push-pin retainer to the child shoulder belt guide rerouter.
