Lock Replacement - Front Door

The front door locks use the fork bolt lock design which includes a safety interlock feature. The door is secured in a closed position when the door lock fork bolt engages the striker. Lock the doors from the inside by sliding the lock knob rearward. The door may also be locked by using the key.

IMPORTANT: Do not attempt repairs in order the correct lock discrepancies. Replace the lock.

Removal Procedure




1. Remove the trim panel.
2. Remove the water deflector.

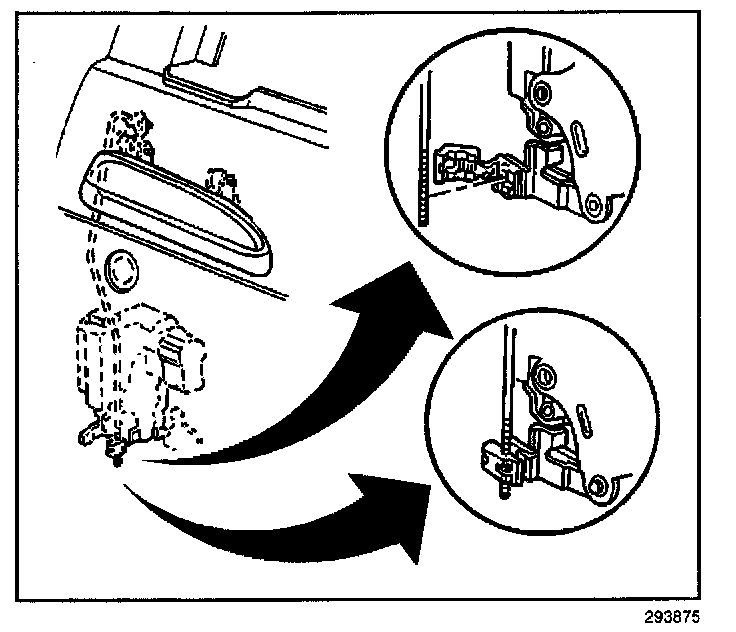

3. Use side cutters to cut off the outside handle rod-to-lock clip from the lock.
4. Unscrew the remainder of the clip from the outside handle rod. Discard the clip.

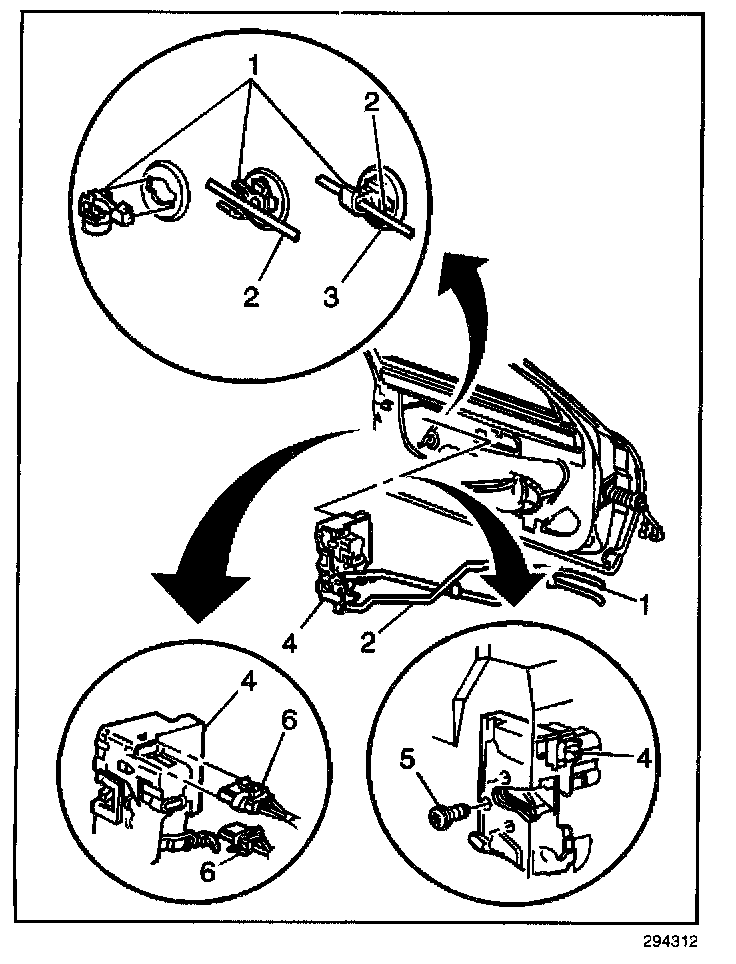

5. Remove the door handle clips (1) from the lock rod (2) and the handle rod (3). Remove the rods from the door handle.




6. Remove the lock assembly bolts (5).
7. Remove the lock assembly and rods.
8. Remove the inside handle rod from the lock.
9. Remove the locking rod from the lock.
10. Disconnect the electrical connectors (6).
11. Remove the lock (4).

Installation Procedure

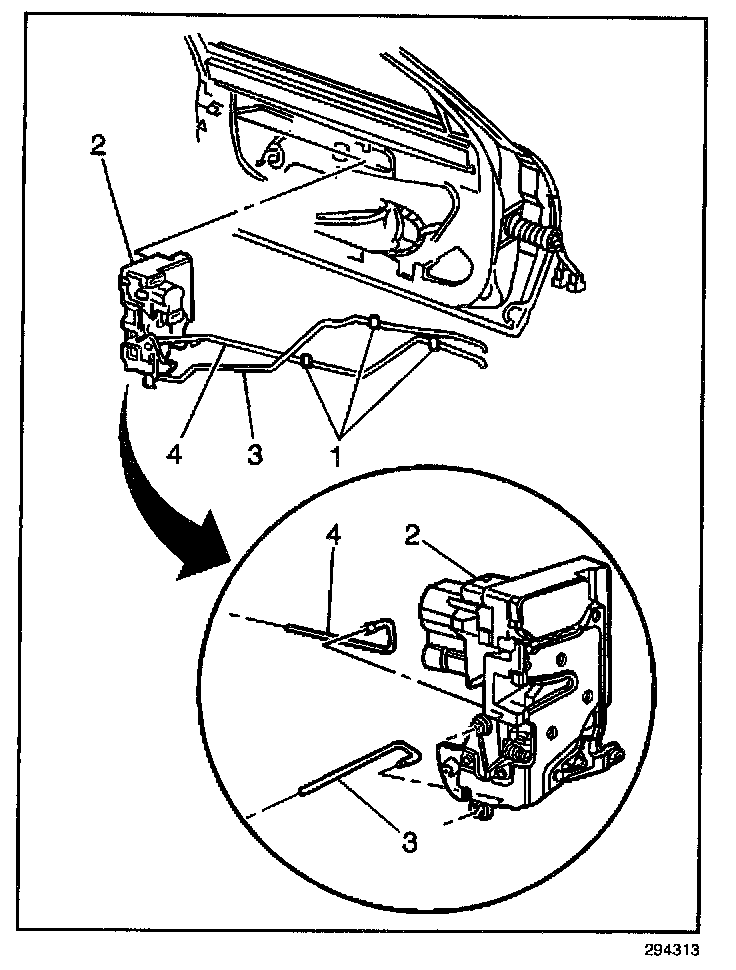

1. Install the inside handle rod (4) and locking rod (3) on the lock.
Push in and rotate the rod through the clip in order to secure the rod.

NOTE: Refer to Fastener Notice in Service Precautions.

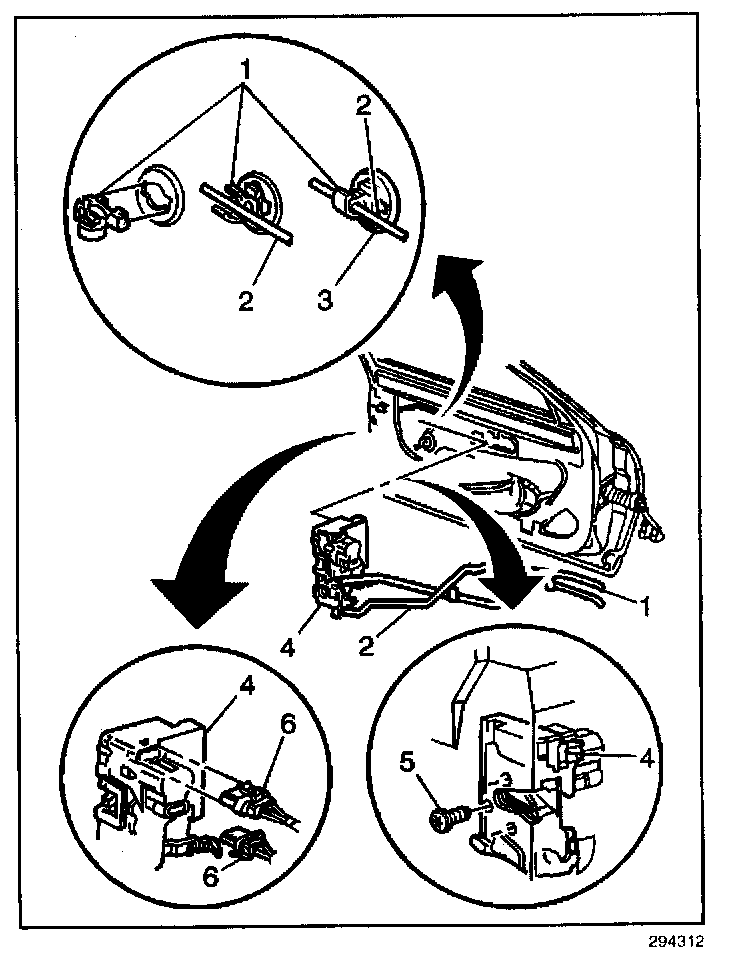

2. Install the door lock assembly bolts (5).
2.1. Stan with the top bolt.
2.2. Tighten in a clockwise direction.

Tighten
Tighten the door lock assembly bolts to 10 N.m (89 lb in).

3. Connect the electrical connectors (6).

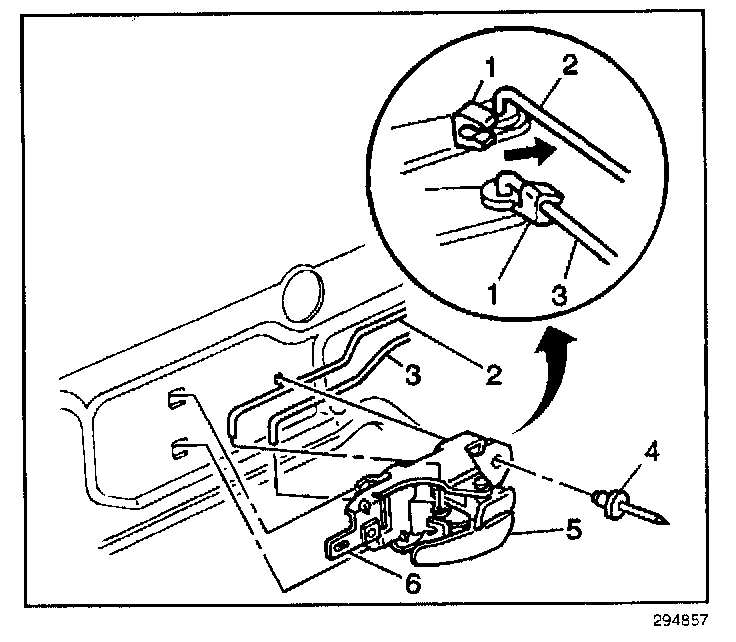

4. Install the lock rod and handle rod to the door handle.

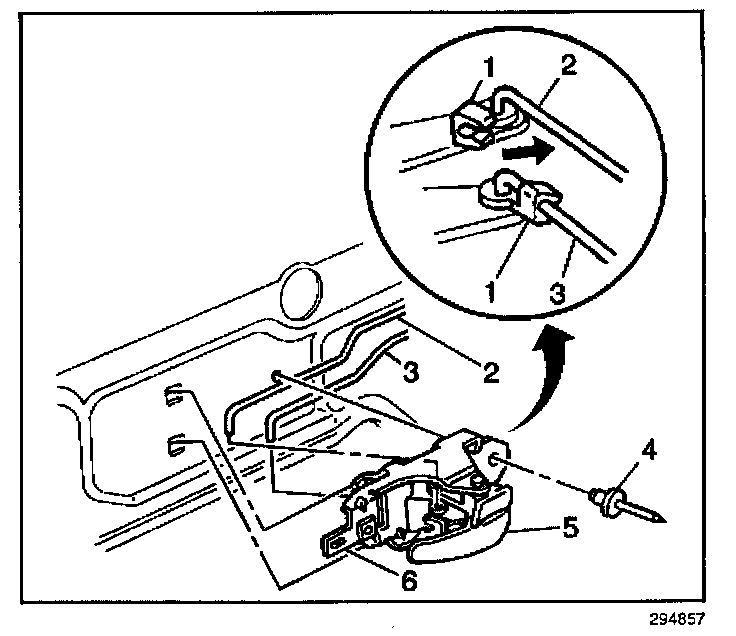

5. Install the door handle clips (1) to the lock rod and the handle rod.




6. Position the outside door handle rod in the clip in order to eliminate any free play in the outside door handle.
7. Snap the clip cover closed over the threaded outside door handle rod.
8. Install the water deflector.
9. Install the trim panel.
