Home >> Chevrolet >> 2001 >> Lumina V6-3.1L VIN J >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuel Tank >> Fuel Tank, C2

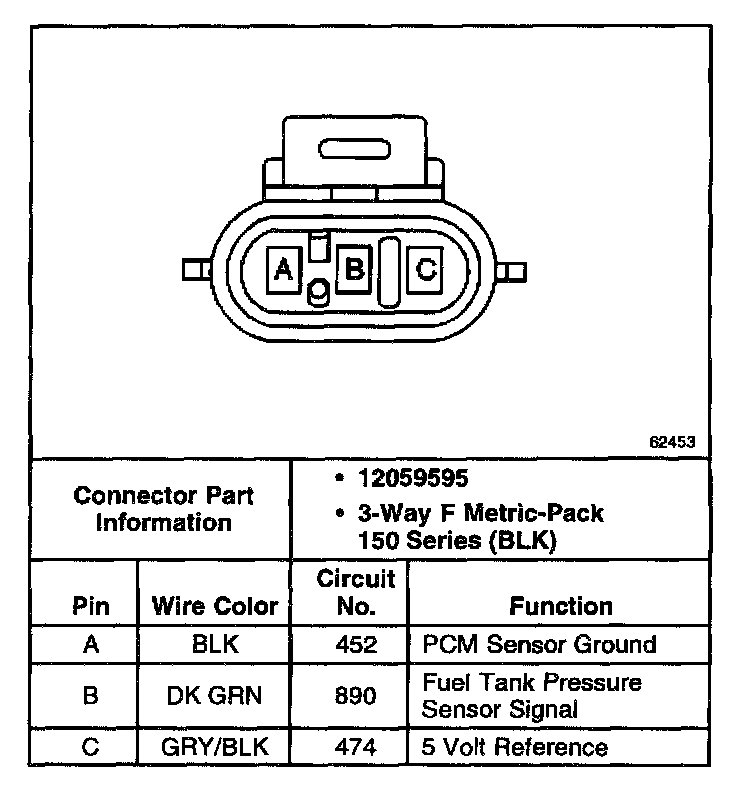

Fuel Tank, C2

Fuel Tank, C2:
