PWR,GRD,Rear COMP Lid Lock Release Solenoid & HDLP SW Input
PWR,GRD,Rear COMP Lid Lock Release Solenoid & HDLP SW Input

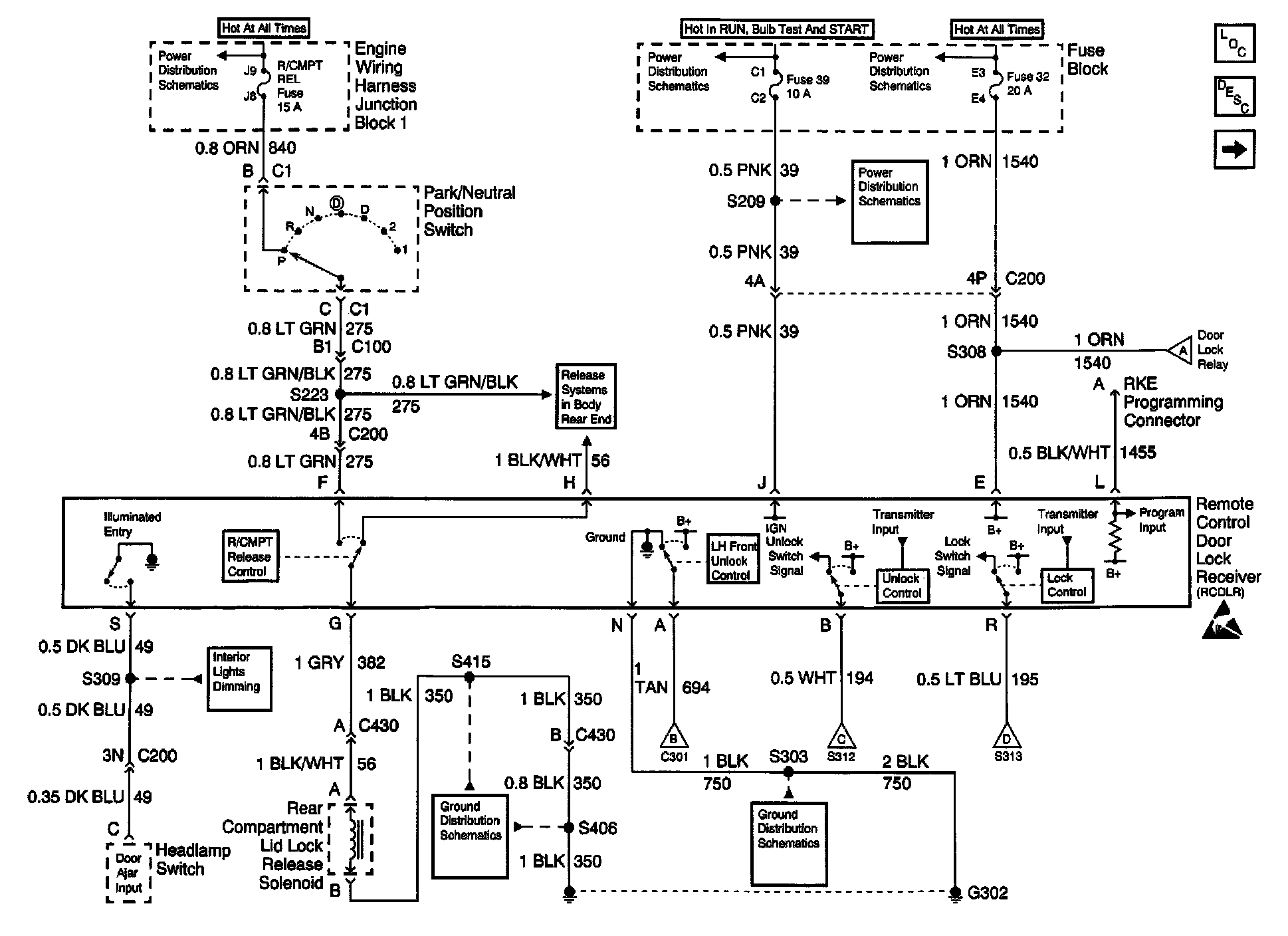

Keyless Entry Schematics: Power Ground Rear Compartment Lid Lock Release Solenoid And Headlamp Switch Input:
