Chevrolet
>>
2001
>>
Lumina V6-3.1L VIN J
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Diagrams
>>
Electrical Diagrams
>>
Charging System
Charging System

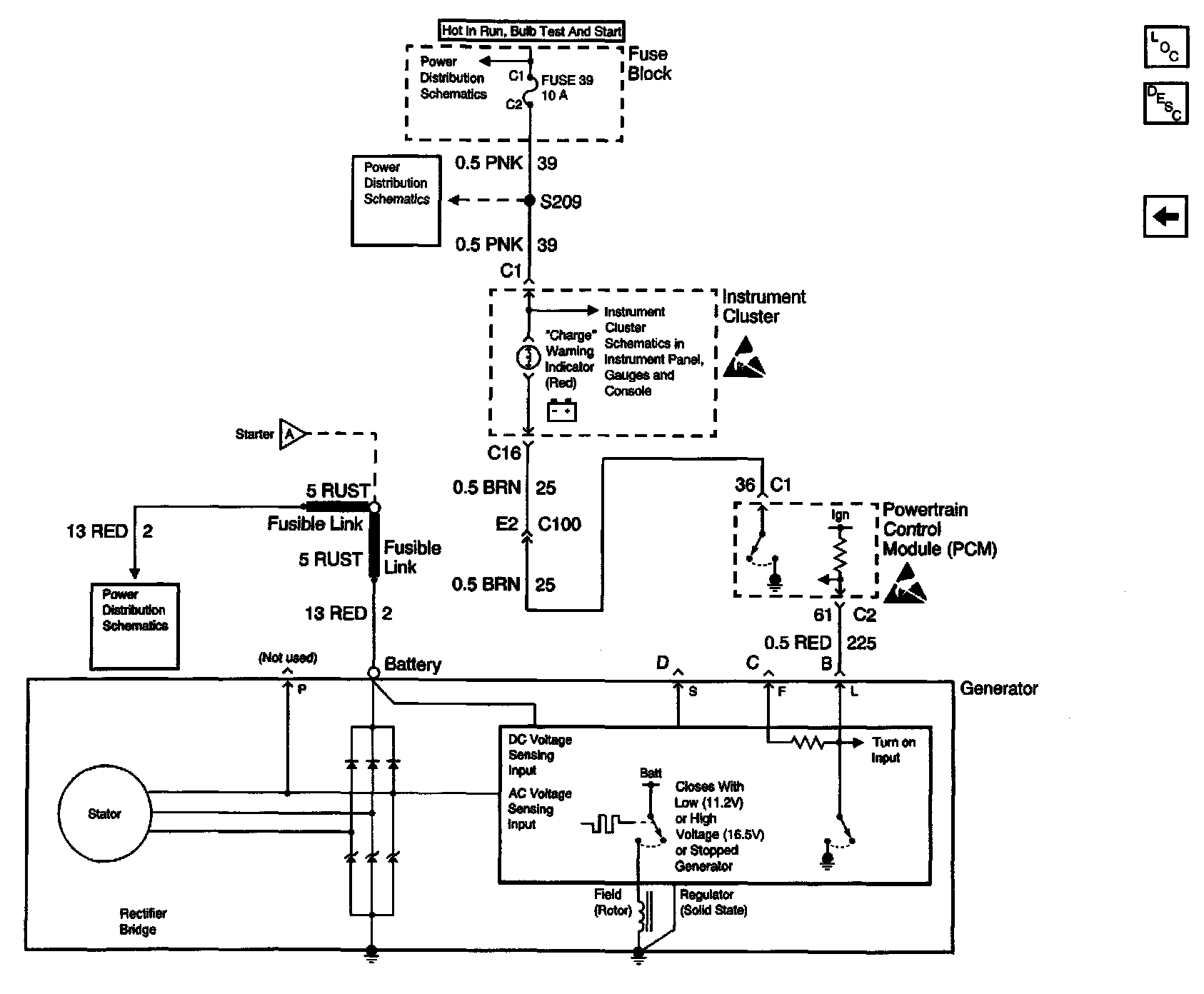

Power/Ground Distribution, And Charging:
