Engine Wiring Harness Junction Block 2
>>
Bottom View
Bottom View

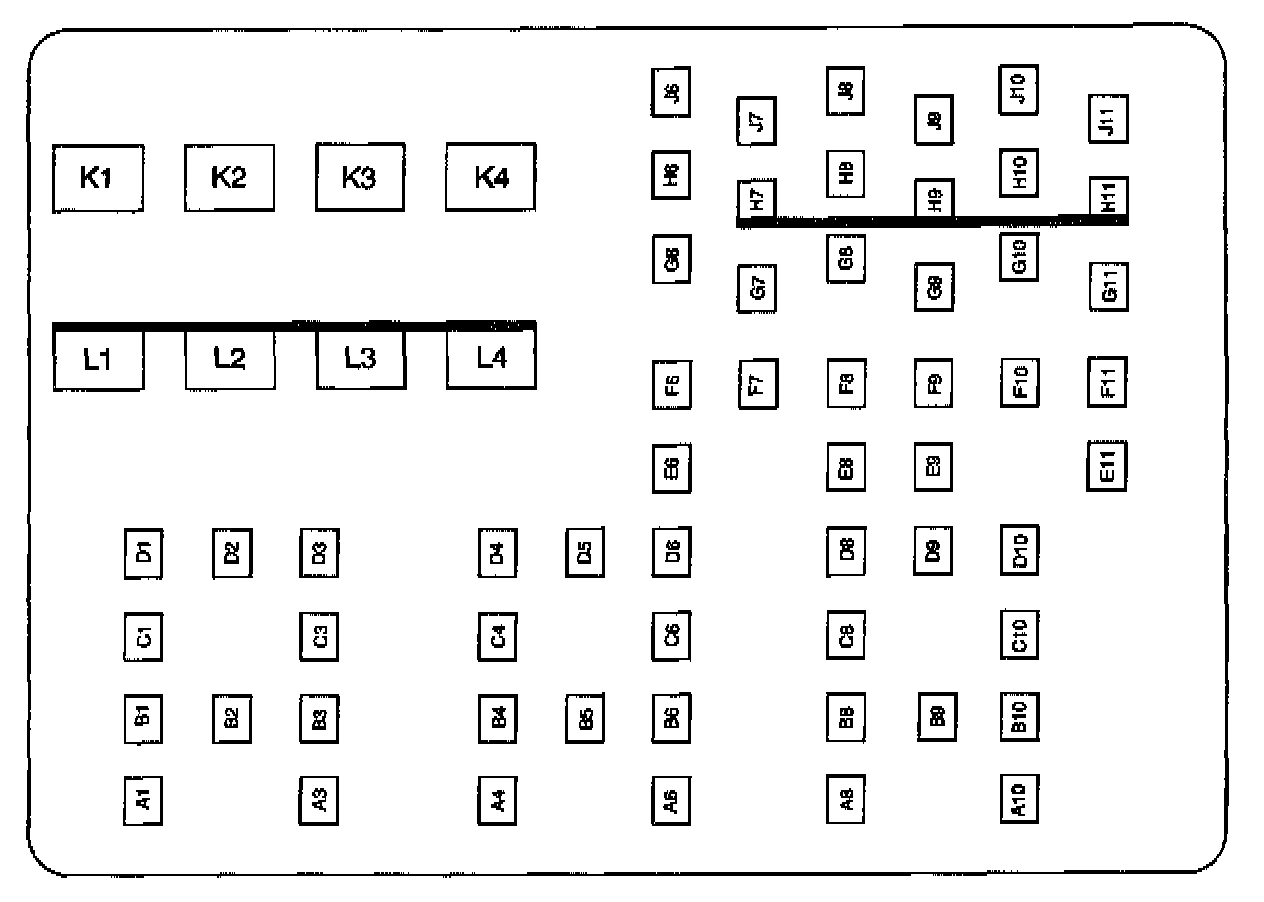

Engine Wiring Harness Junction Block 2 (Bottom View):

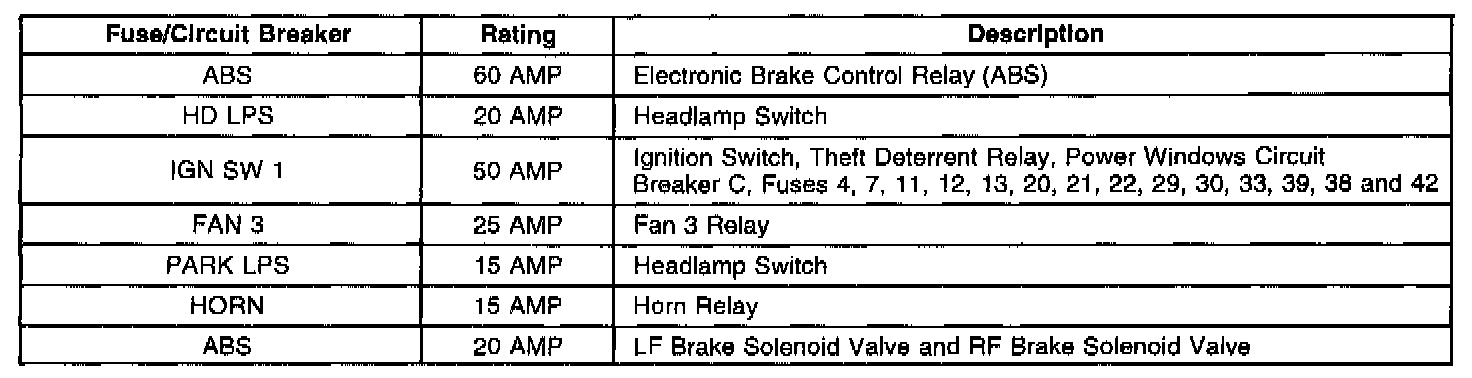

Engine Wiring Harness Junction Block 2 Fuse Application Table:
