Keyless Entry (With Remote Control Door Lock Receiver)
Keyless Entry (With Remote Control Door Lock Receiver)

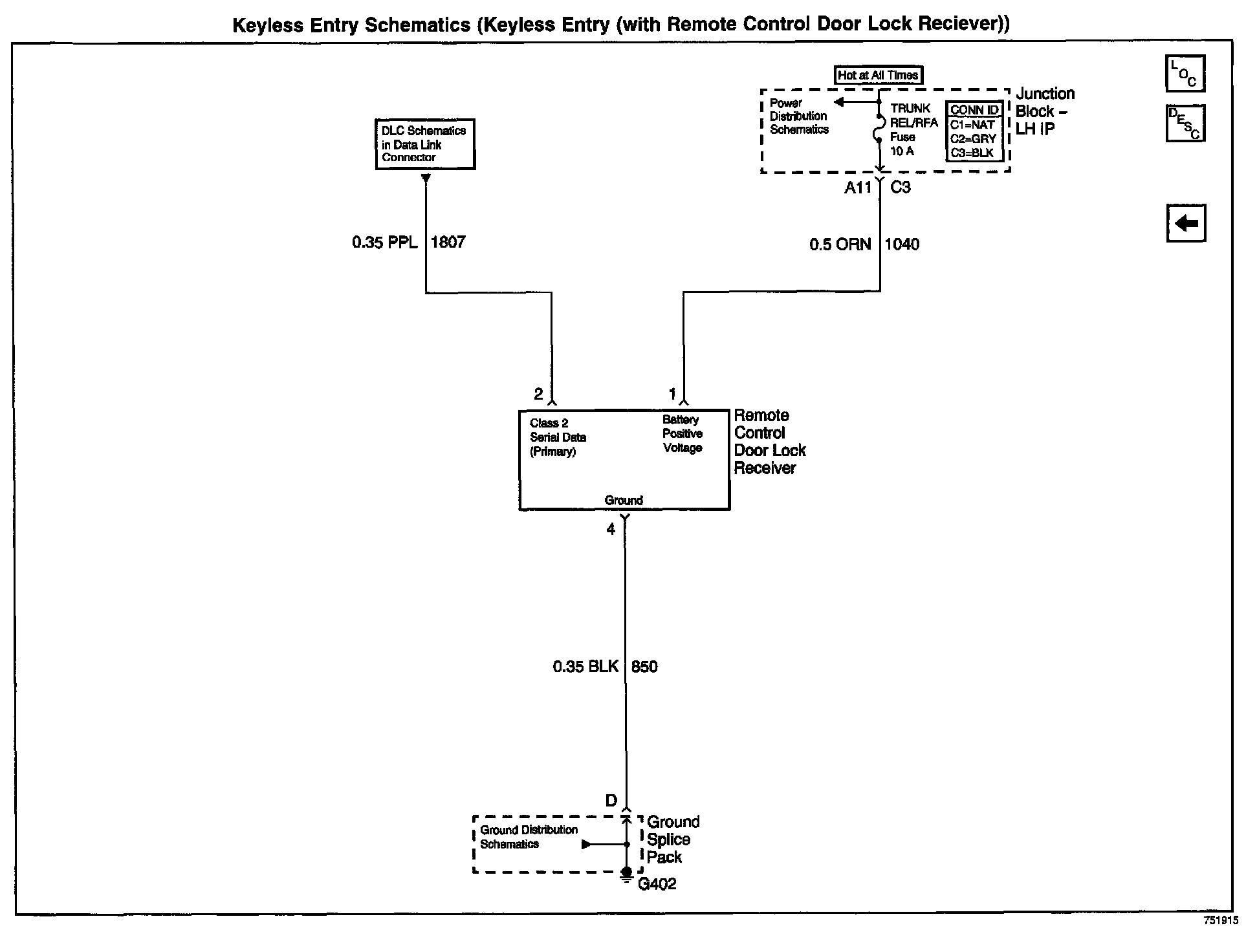

Keyless Entry Schematics: Keyless Entry (With Remote Control Door Lock Reciever):
