Home >> Chevrolet >> 2001 >> Malibu V6-3.1L VIN J >> Repair and Diagnosis >> Diagrams >> Connector Views >> Heated Glass Element >> Rear Window Defogger Grid C1

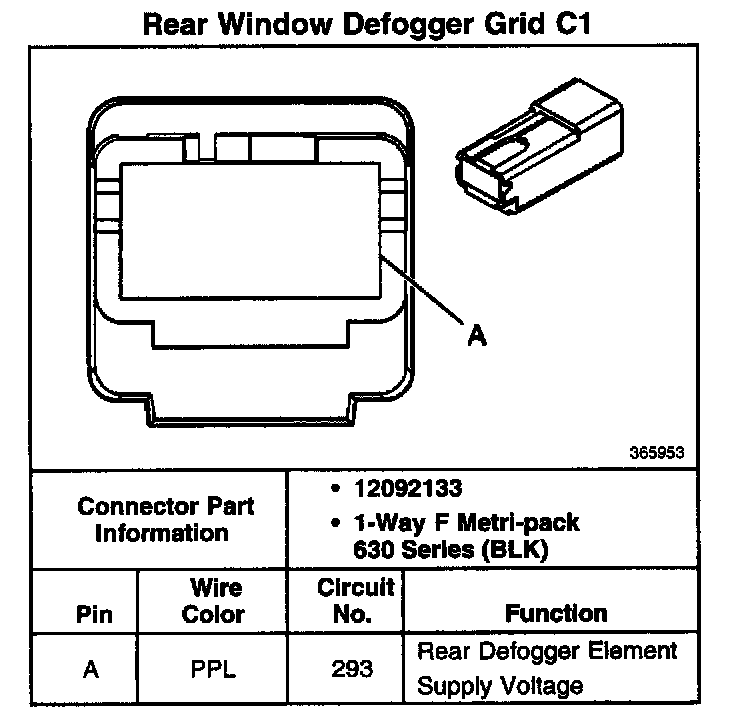

Rear Window Defogger Grid C1

Rear Window Defogger Grid C1:
