Home >> Chevrolet >> 2001 >> Malibu V6-3.1L VIN J >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> Driver Controls

Driver Controls

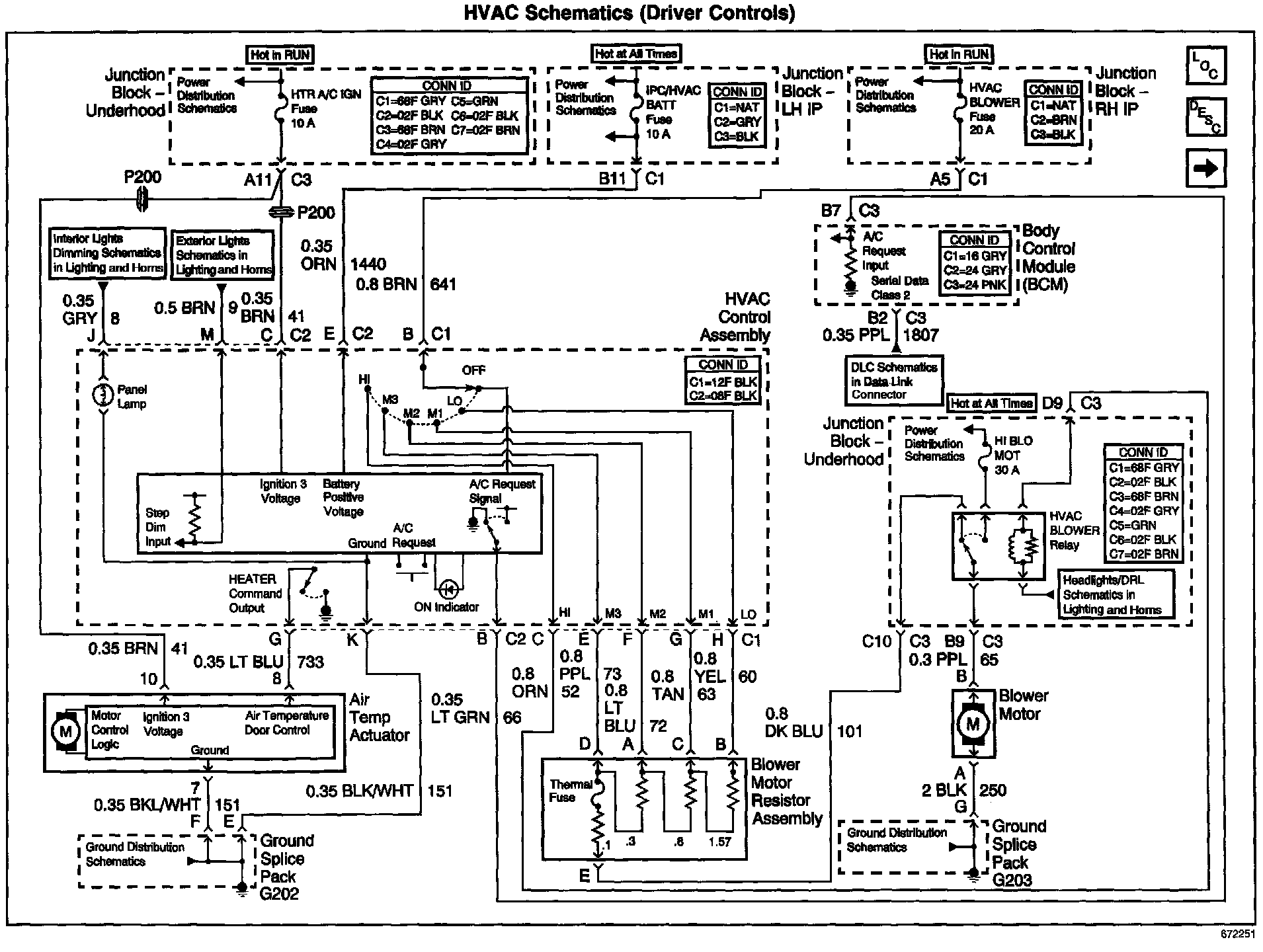

HVAC Schematics: Driver Controls:
