Cooling Fan Controls and A/C Controls

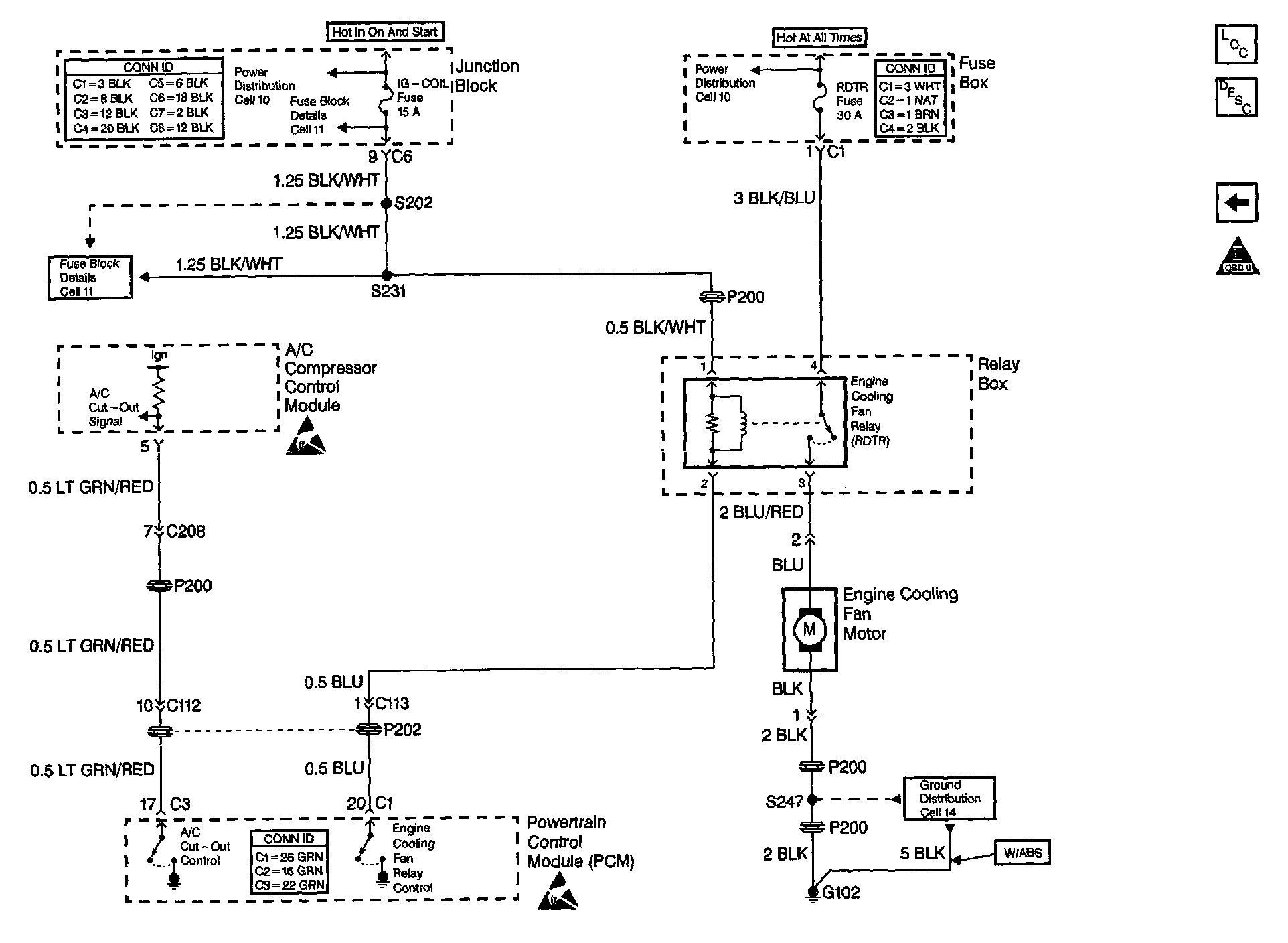

Engine Controls Schematics: Cooling Fan Controls And A/C Controls:
