Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2001
>>
Monte Carlo V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
System Diagram
>>

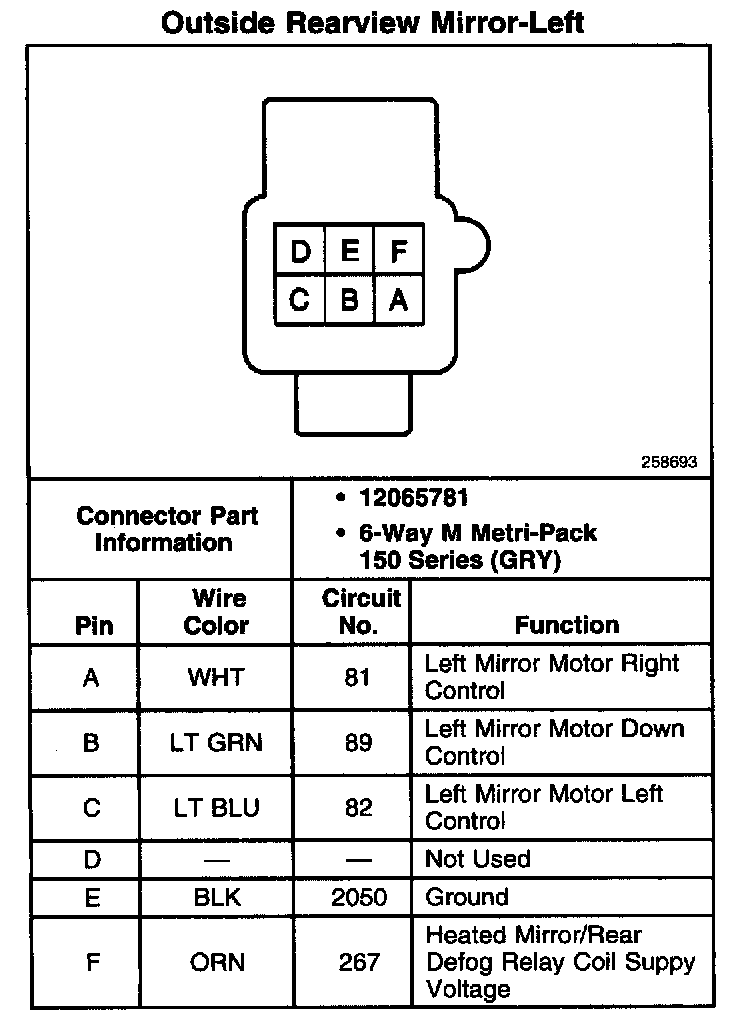

Outside Rearview Mirror-Left
Outside Rearview Mirror-Left
Outside Rearview Mirror-Left:
