Outside Rearview Mirror - Driver

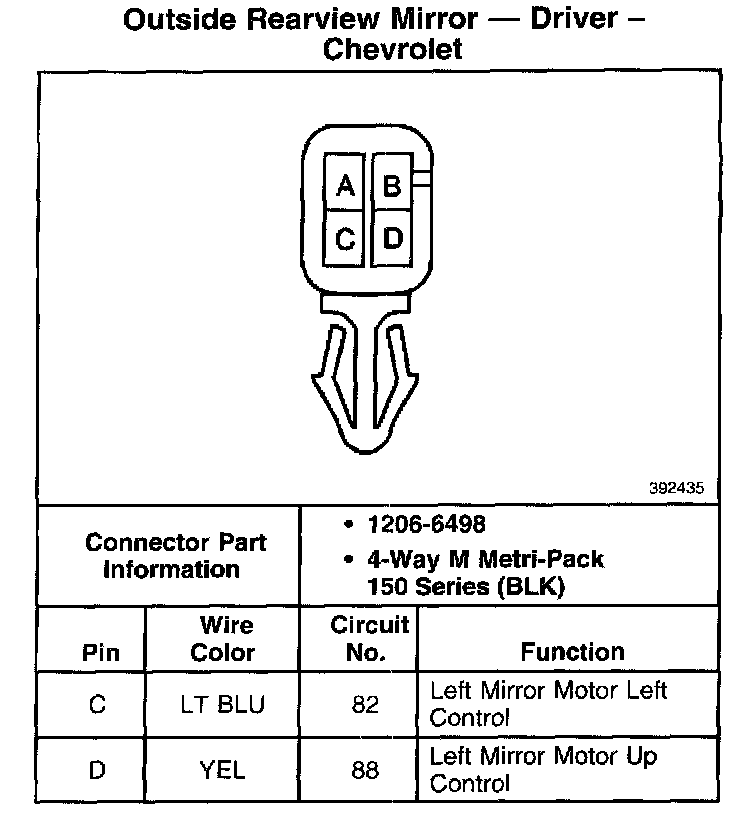

Outside Rearview Mirror - Driver - Chevrolet Part 2:

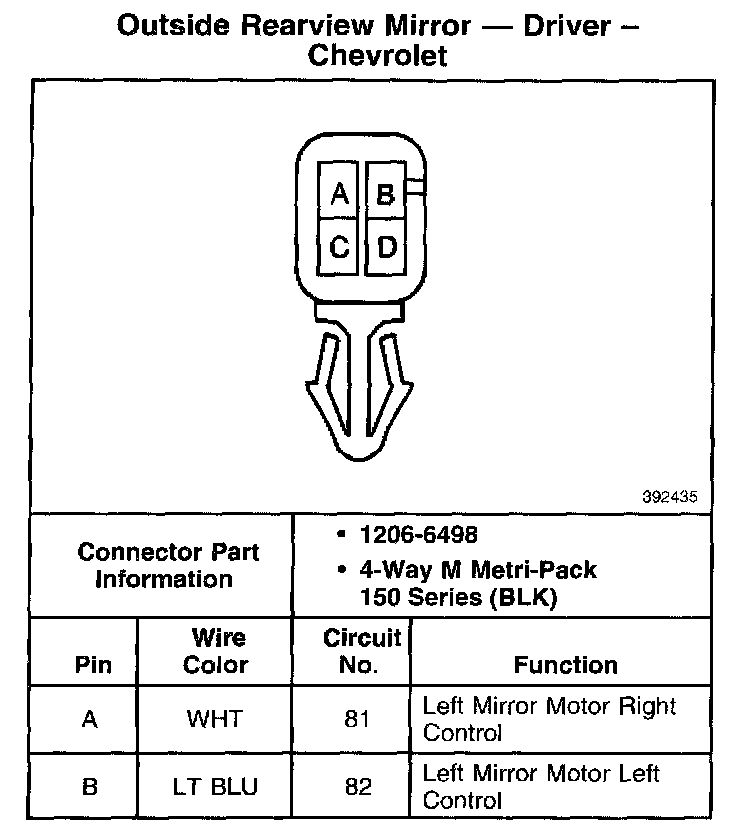

Outside Rearview Mirror - Driver - Chevrolet Part 1:
