Home >> Chevrolet >> 2002 >> Cavalier L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Turn Signals >> Turn Signal Lamp >> Park/Turn Signal Lamp

Park/Turn Signal Lamp

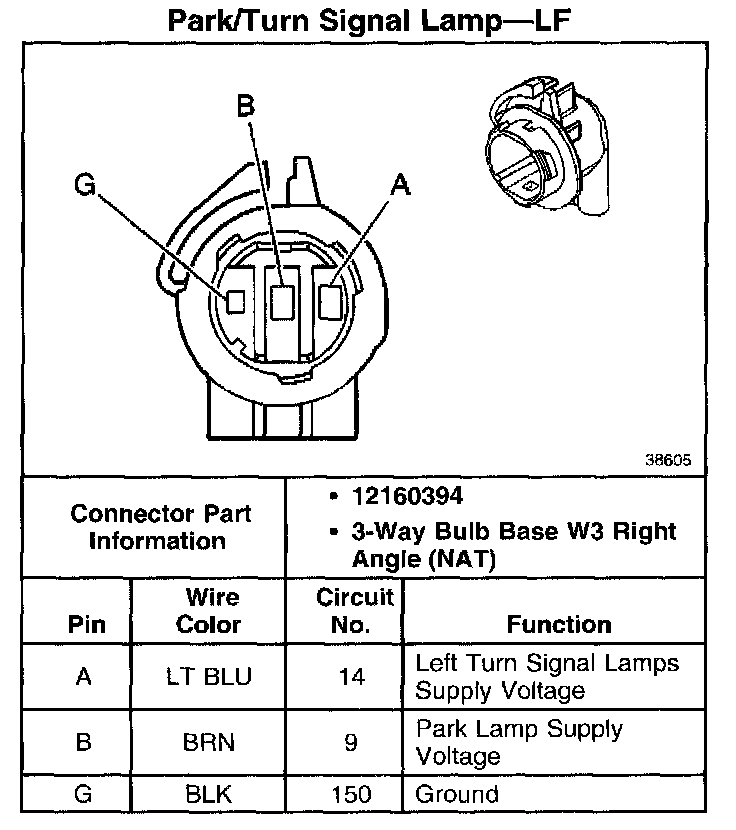

Park/Turn Signal Lamp - LF:

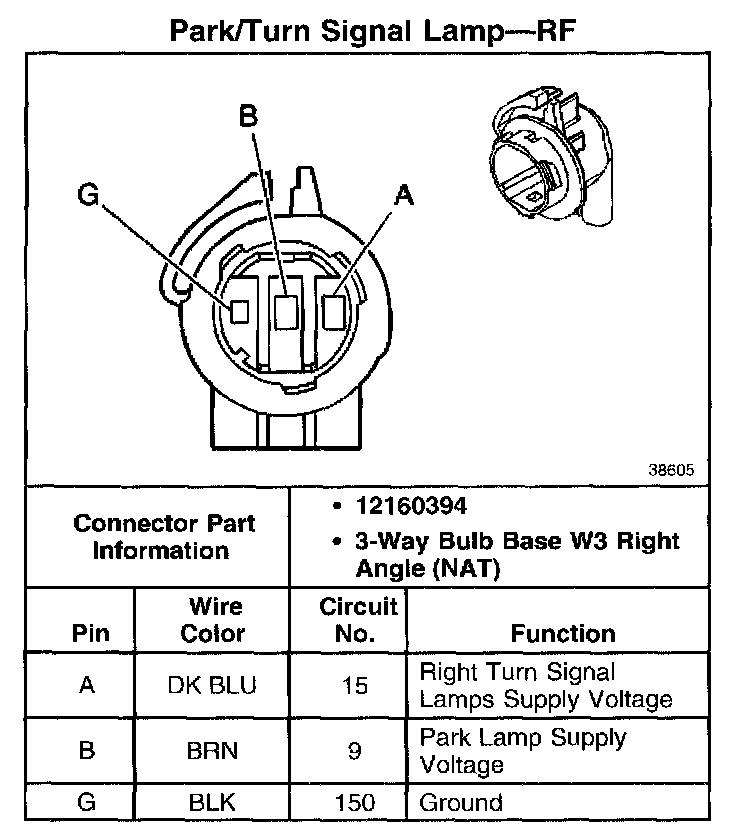

Park/Turn Signal Lamp - RF:
