Seat Belt: Service and Repair

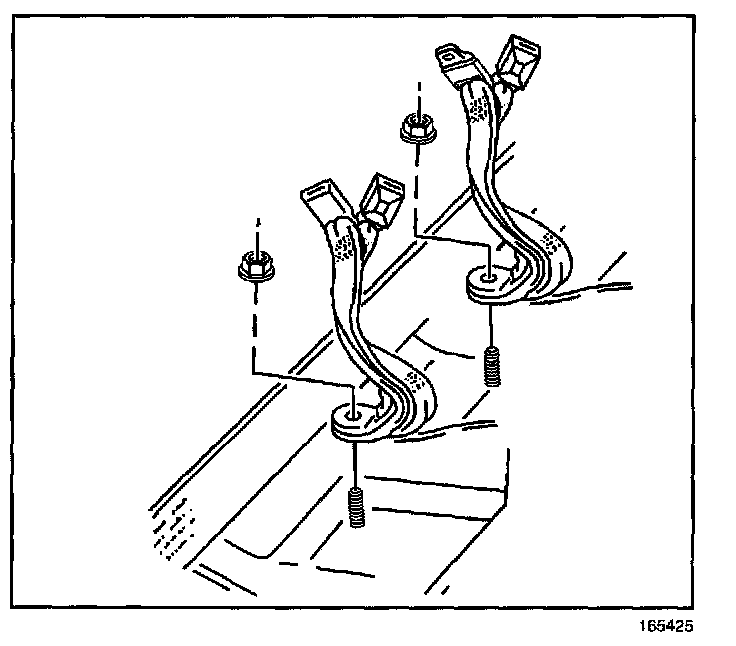

SEAT BELT REPLACEMENT - CENTER REARREMOVAL PROCEDURE
1. Remove the rear seat cushion.
2. Remove the nut from the center rear seat belt.
3. Remove the center rear seat belt.

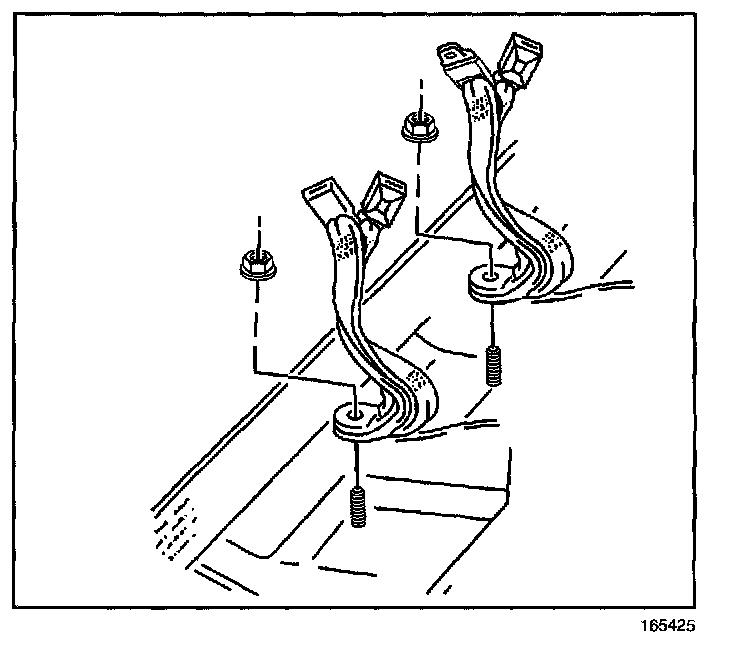

INSTALLATION PROCEDURE
1. Position the center rear seat belt to the studs.
NOTE: Refer to Fastener Notice in Service Precautions.
2. Install the nut to the center rear seat belt.
Tighten
Tighten the center rear seat belt nut to 42 N.m (31 lb ft).
3. Install the rear seat cushion.
