Vehicle Lifting - Frame Contact Hoist

TOOLS REQUIRED
J 43625 Lift Pad Adapter

FRONT HOIST PADS

IMPORTANT: The front hoist pads must not contact the rocker panels, the front fenders, or the floor pan.

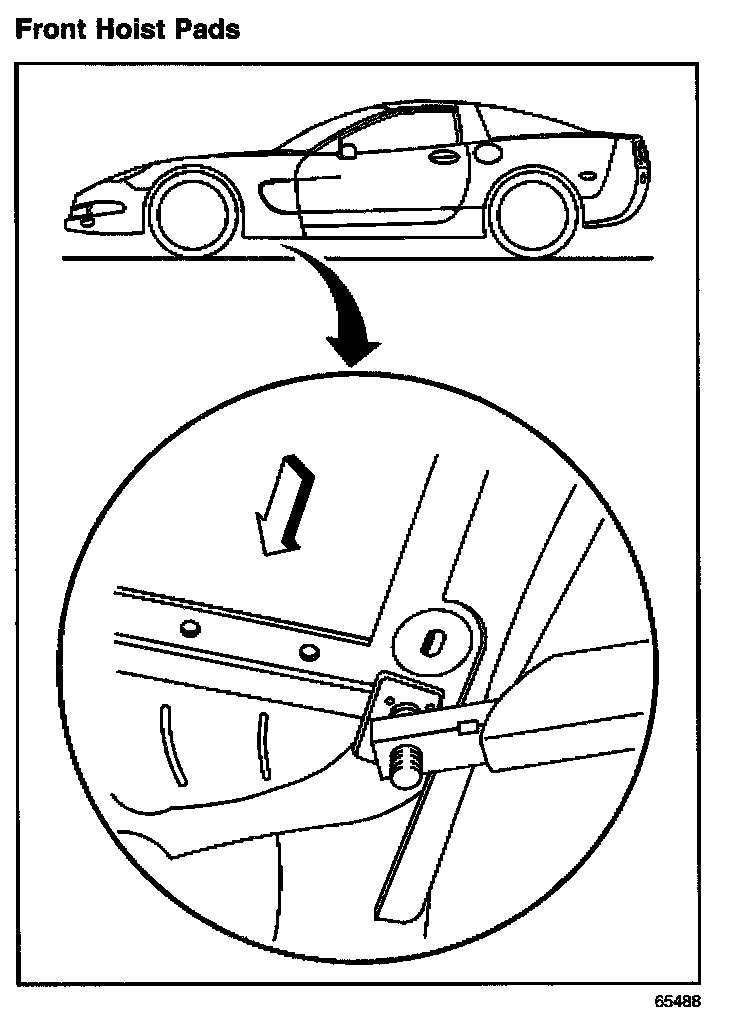

Front Hoist Pads:

Position the (frame contact) front hoist pads as follows:
^ Under or immediately forward of the front frame rail shipping slot reinforcements.
^ The long sides of the hoist pads parallel to the frame rails.

REAR HOIST PADS

IMPORTANT:
^ The rear hoist pads must not contact the rocker panels to the outside of the frame rail shipping slot reinforcements.
^ The rear hoist pads must not contact the floor pan.

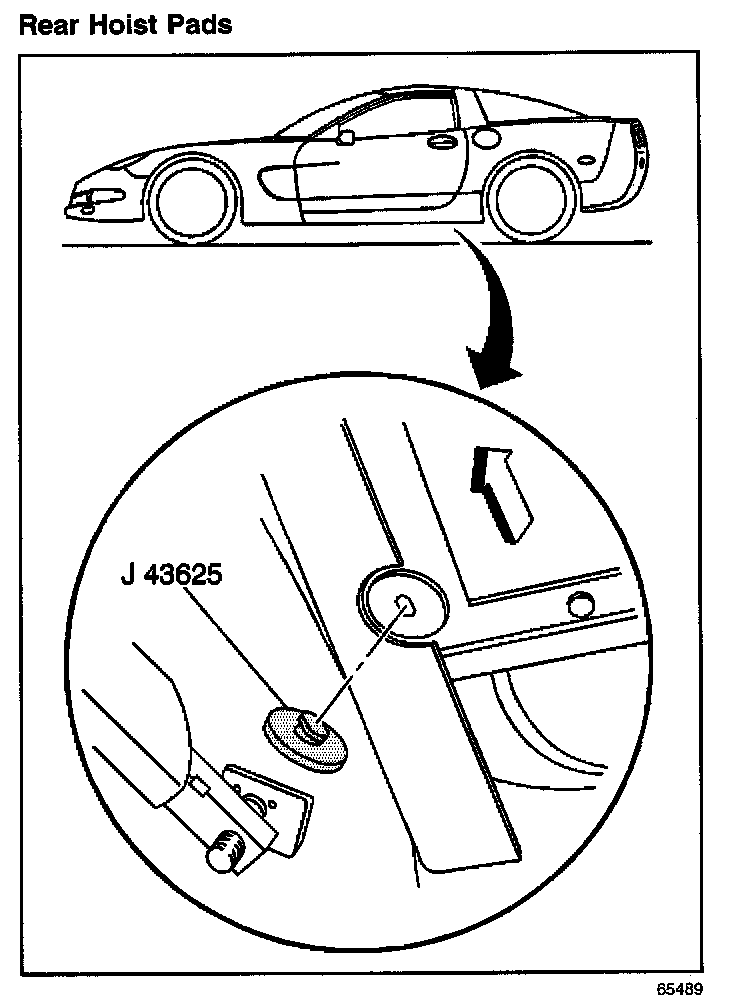

Rear Hoist Pads:

Install the J 43625 into the rear frame rail shipping slots, lock into place and position the rear hoist pads as follows:
^ Under the J 43625.
^ The long sides of the hoist pads perpendicular to the J 43625.
