Steering Wheel: Service and Repair

Steering Wheel Replacement

- Tools Required
- J 42120 Steering Wheel Puller Legs
- J 1859-A Steering Wheel Puller
- J 42640 Steering Column Lock Pin

Removal Procedure





1. Remove the steering wheel inflator module.
2. Remove the horn electrical connector.
3. Install J 42640 to the steering column.
4. Remove the steering wheel set nut
5. Discard the steering wheel set nut.

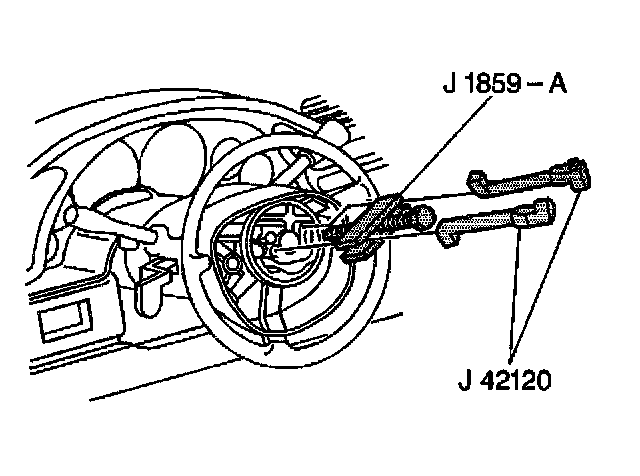

6. Install J 42120 and J 1859-A to the steering wheel.
7. Tighten the puller center screw against steering column shaft until the steering wheel slides off the steering column shaft.
8. Remove J 42120 and J 1859-A from the steering wheel.

Installation Procedure





1. Install the steering wheel to the steering column, observing the alignment marks (splines).

Notice: Refer to Fastener Notice in Service Precautions.

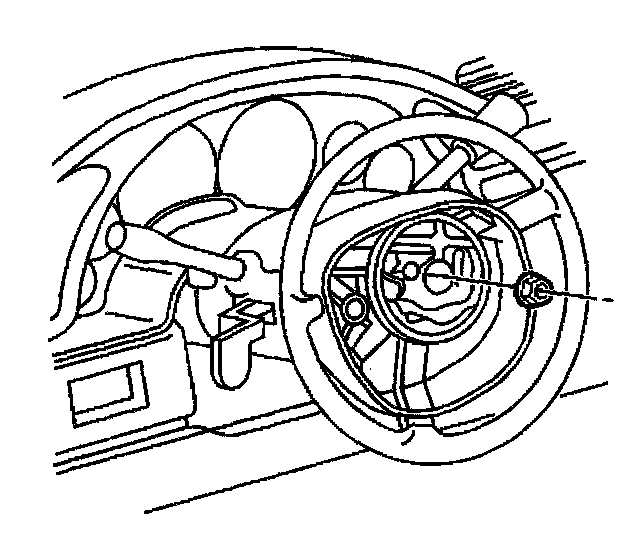

2. Install a new steering wheel set nut.
- Tighten the new steering wheel set nut to 41 Nm (30 ft. lbs.).
3. Remove J 42640 from the steering column.
4. Connect the horn electrical connector.
5. Install the steering wheel inflator module.
6. Perform a SIR Diagnostic System Check.
