Transmission Vent Replacement

Removal Procedure





1. Remove the air cleaner intake duct.
Important: The transaxle vent is a press fit to the transaxle.

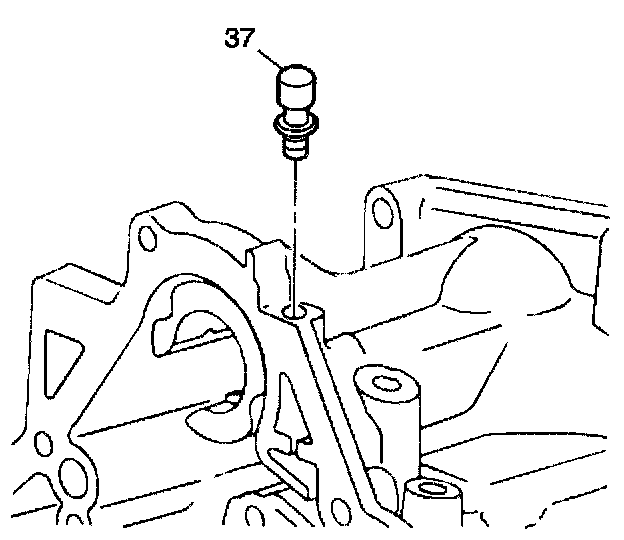

2. Remove the transaxle vent (37).

Installation Procedure

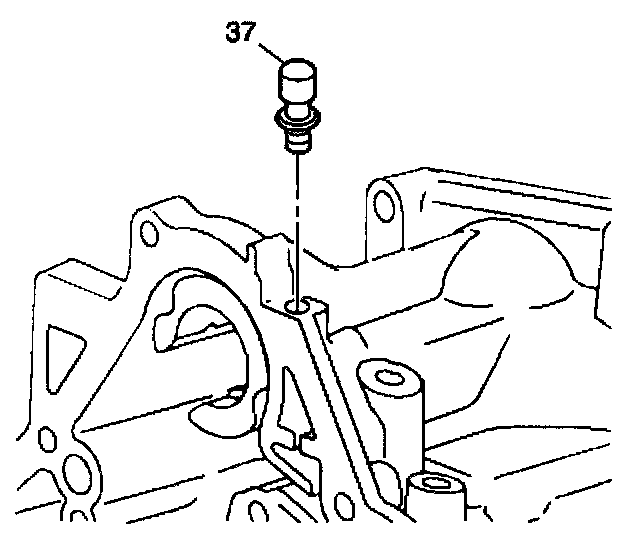

1. Install the transaxle vent (37).
2. Install the air cleaner intake duct.
