Inlet

Radiator Hose Replacement - Inlet

^ Tools Required
- J 38185 Hose Clamp Pliers

Removal Procedure
1. Drain the cooling system to a level below the hose being removed.
2. Using the J 38185, reposition the hose clamp at the radiator and the coolant outlet.

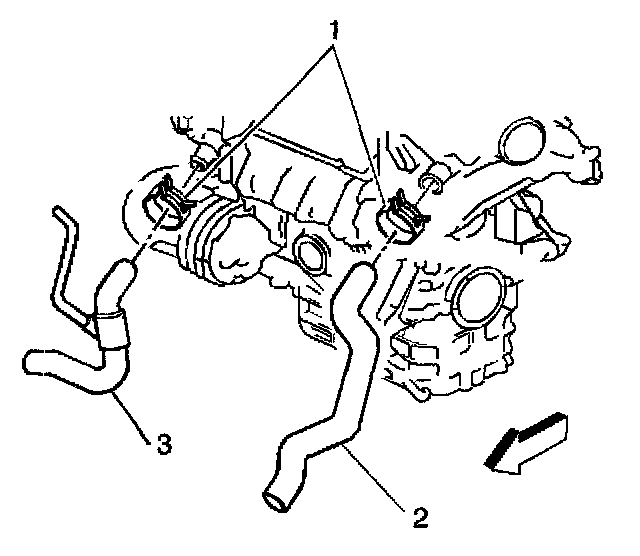

3. Remove the radiator inlet hose clamps (1) and hose (2) from the radiator and the coolant outlet.

Installation Procedure

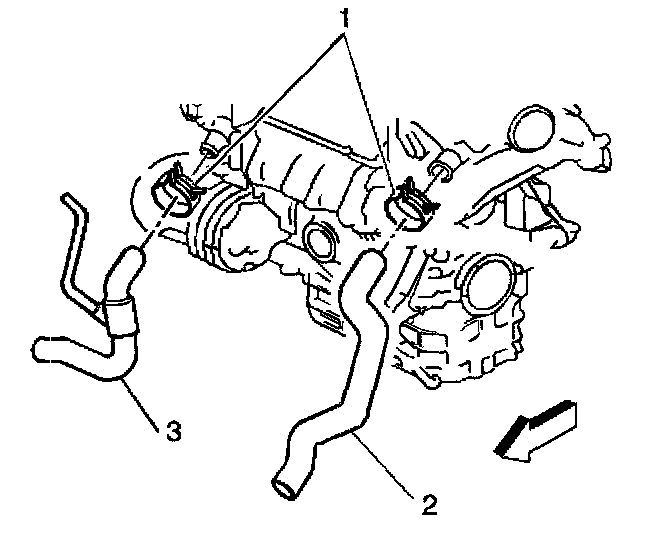

1. Install the radiator inlet hose (2) and the clamps (1) to the radiator and the coolant outlet.
2. Using the J 38185, reposition and install the hose clamps at the radiator and the coolant outlet.
3. Fill the cooling system.
