Accumulator: Service and Repair

Removal Procedure





1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the filter.

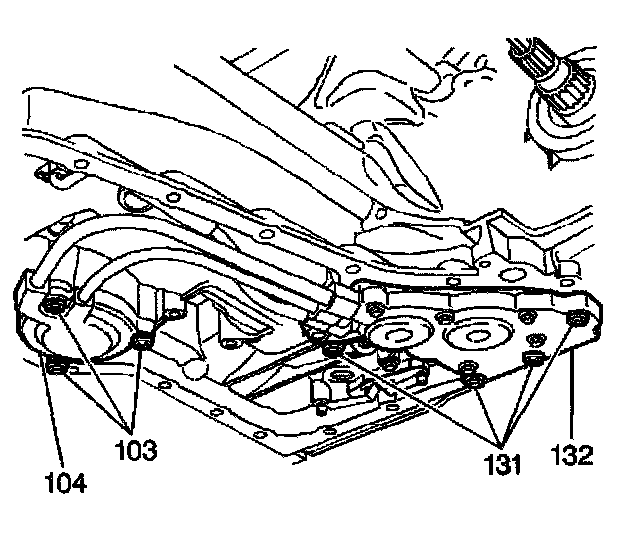

3. Remove the accumulator bolts (131).
4. Remove the manual 2-1 band servo cover bolts (103).

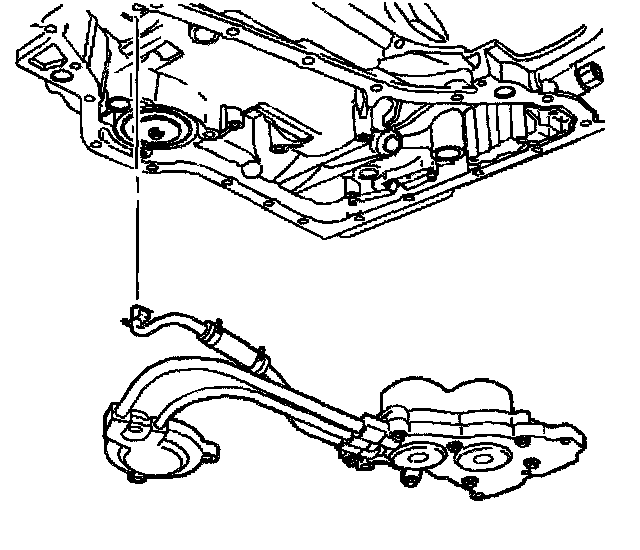

5. Remove the accumulator assembly.

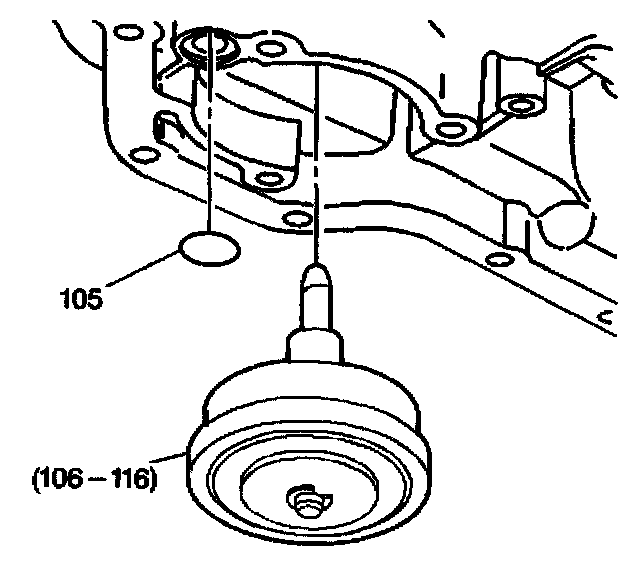

6. Remove the manual 2-1 band servo (106-116).
7. To disassemble, inspect and service the accumulator and 2 - 1 manual servo.

Installation Procedure





1. If disassembled, assemble the 2 -1 band servo.

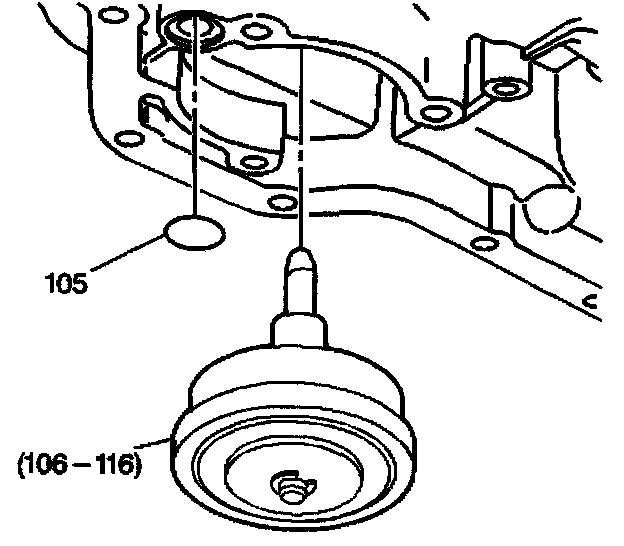

2. Install the manual 2-1 band servo (106-116).
3. Install the manual 2-1 band servo cover (104).

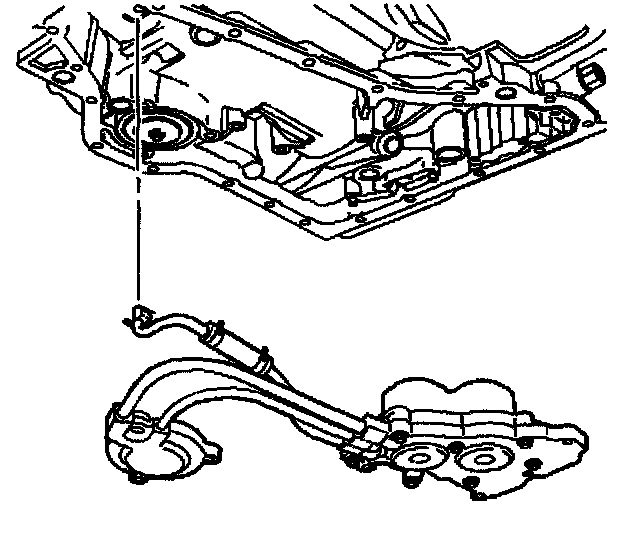

4. Install the accumulator assembly.





Notice: Refer to Fastener Notice in Service Precautions.

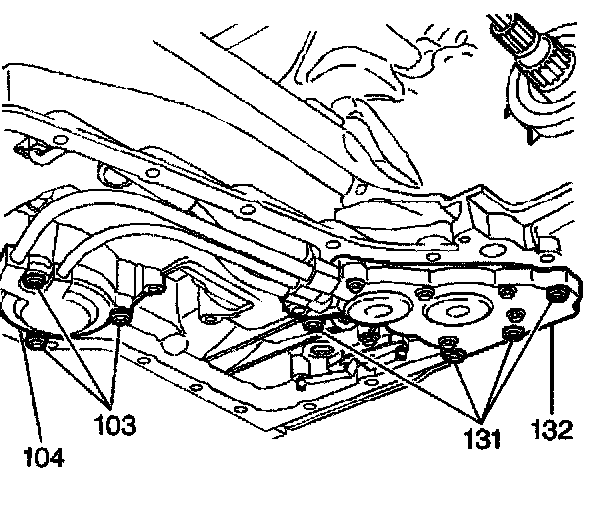

5. Install the manual 2-1 band servo cover bolts (103).
^ Tighten the bolts (103) to 24 Nm (17 ft. lbs.).
6. Install the accumulator bolts (131).
^ Tighten the bolts (131) to 11 Nm (97 inch lbs.).
7. If removed, install the new filter seal.
8. Install the filter.
9. Lower the vehicle.
10. Check and fill the transaxle.
