Mode Control Cable Replacement

REMOVAL PROCEDURE




1. Remove the I/P trim plate.

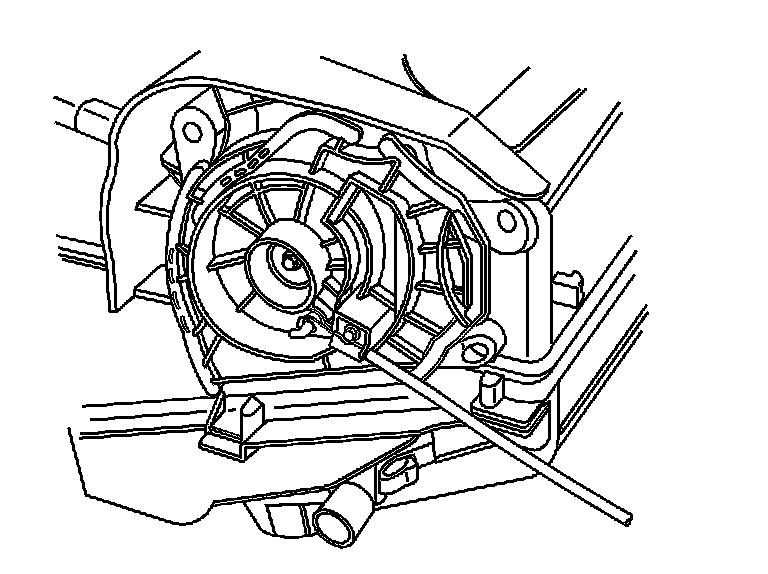

2. Disconnect the mode control cable from the mode door lever.
3. Remove the cable flag retaining screw.
4. Remove the HVAC control assembly.

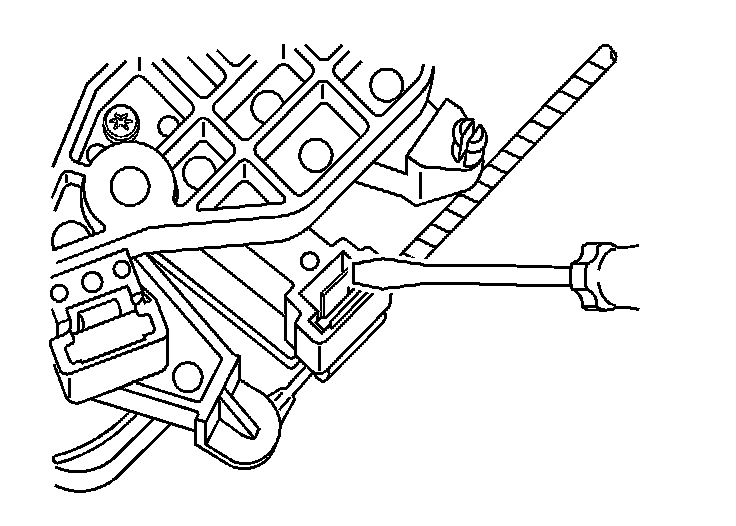

5. Release the flag from the mode base using the release tab.




6. Remove the flag.
7. Remove the cable end form from the lever post.
8. Remove the temperature control cable.

INSTALLATION PROCEDURE




1. Install the mode control cable to the HVAC control assembly.

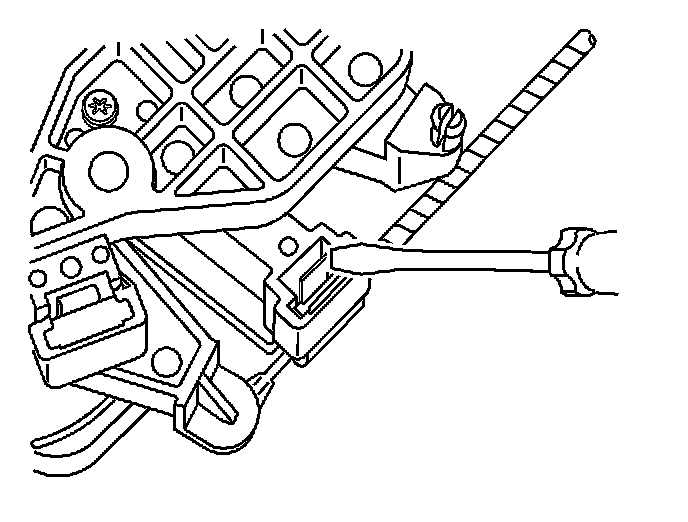

2. Snap the flag into the mode base.
3. Snap the cable end form over the lever post.

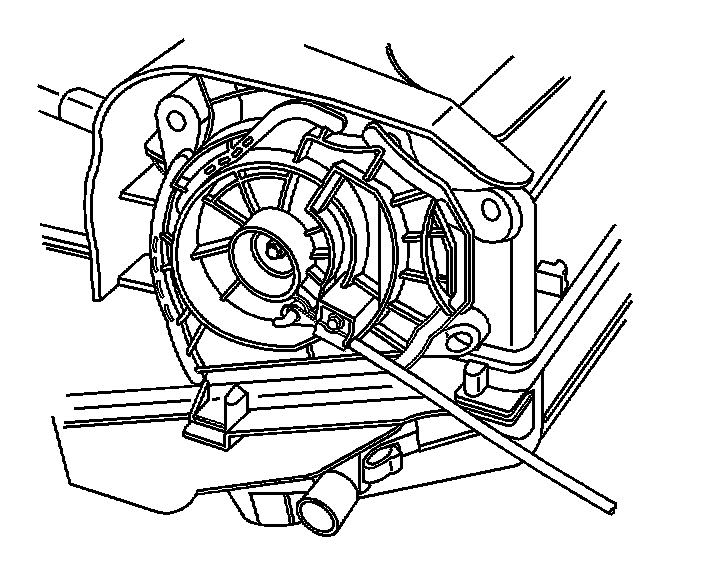

4. Install the cable to the mode door lever/cam.
5. Install the cable flag and screw to the HVAC module assembly.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the screw to 2 N.m (18 lb in).

6. Install the HVAC control assembly.
7. Install the I/P trim plate.
