Temperature Control Cable Replacement

REMOVAL PROCEDURE




1. Remove the I/P trim plate.

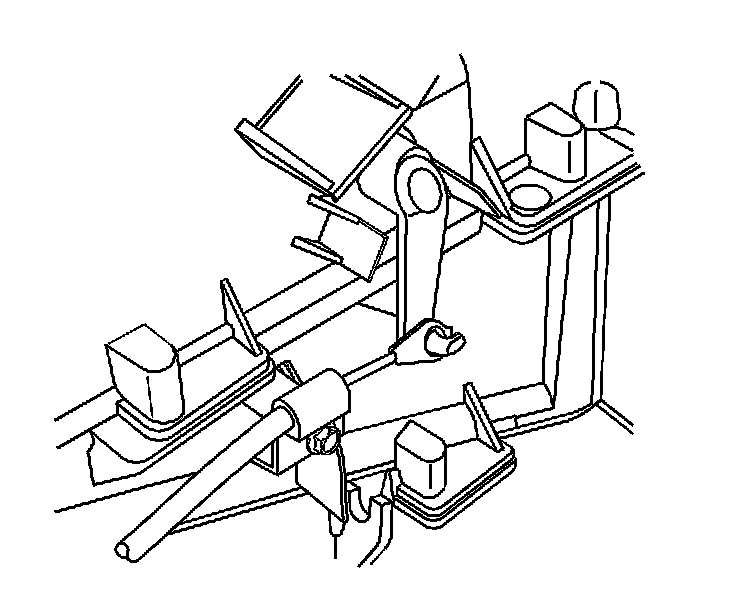

2. Disconnect the temperature control cable from the temperature door lever.
3. Remove the cable flag retaining screw.
4. Remove the HVAC control assembly.

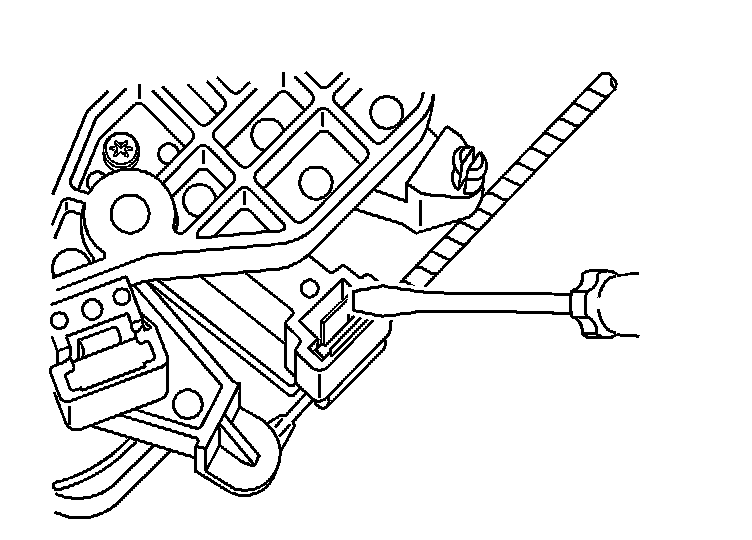

5. Use the tab to release the flag from the HVAC control assembly.
6. Remove the temperature control cable.

INSTALLATION PROCEDURE




1. Install the temperature control cable to the HVAC control assembly.

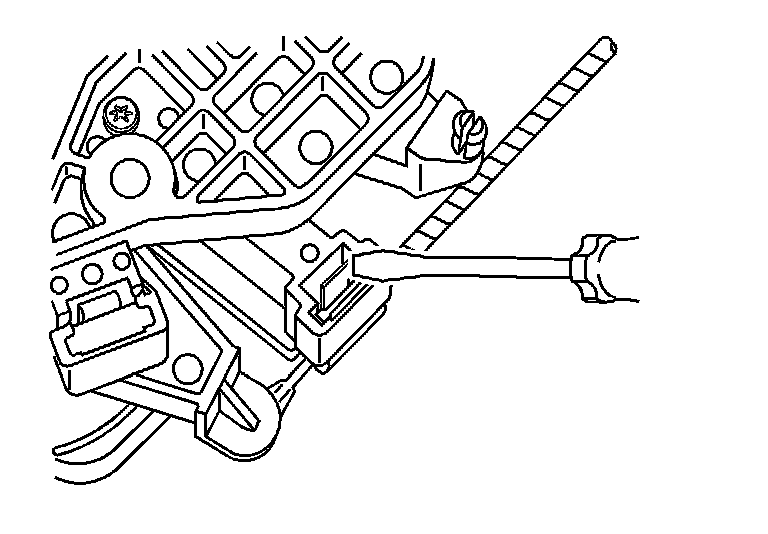

2. Snap the cable flag to the base of the HVAC control assembly.
3. Snap the die cast end form over the lever post.
4. Install the cable cover.

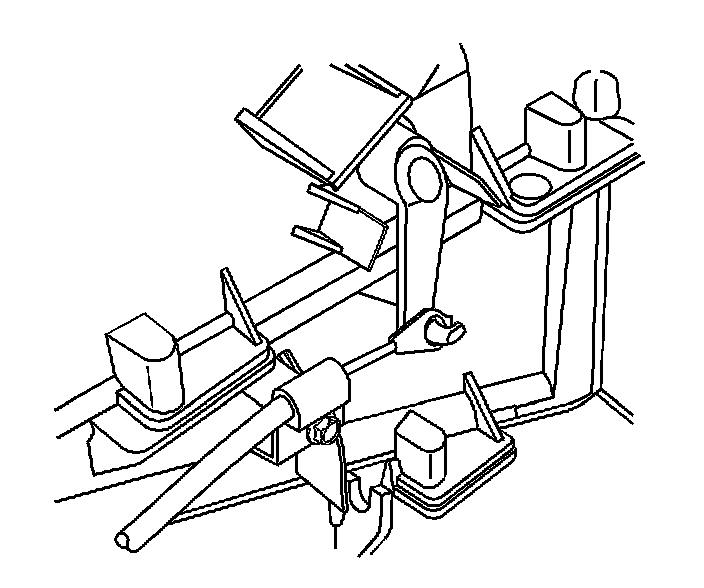

5. Install the cable to the temperature door lever.
6. Install the cable flag and screw to the HVAC module assembly.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the screw to 2 N.m (18 lb in).

7. Install the HVAC control assembly.
8. Install the I/P trim plate.
