Evaporator Drain Tube: Service and Repair

EVAPORATOR DRAIN HOSE REPLACEMENT

REMOVAL PROCEDURE
1. Remove the battery.
2. Remove the battery heat shield.

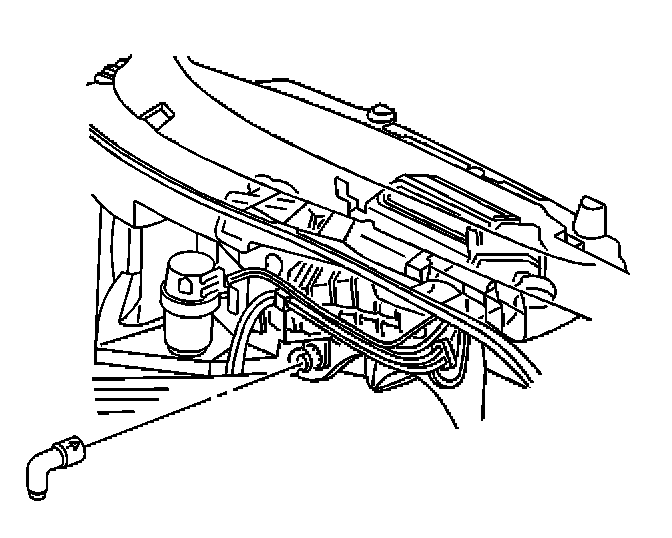

3. Remove the HVAC module drain tube from the HVAC module.








INSTALLATION PROCEDURE
1. Install the HVAC module drain tube to the module.
- Ensure that the drain tube is fully seated to the HVAC module.

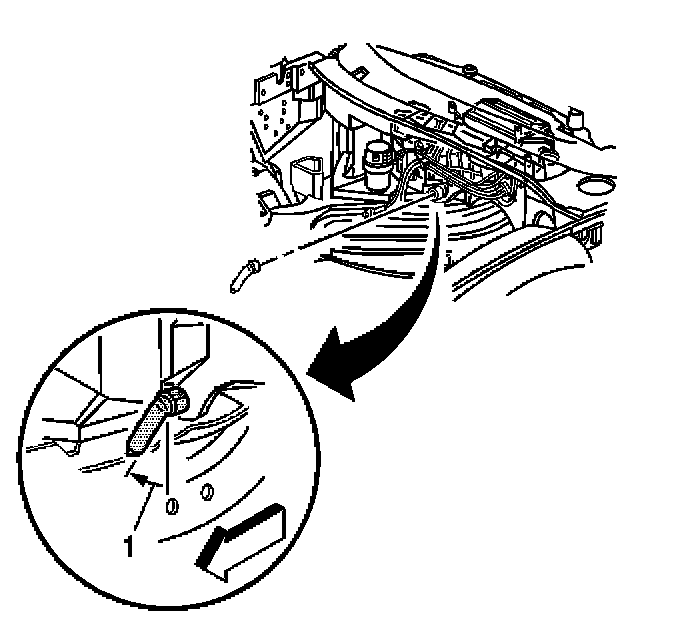

- Align the drain tube to contact the cowl as shown (1).


2. Install the battery heat shield.
3. Install the battery.
