Home >> Chevrolet >> 2003 >> Impala V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> C400-C901 >> Inline Connector C400

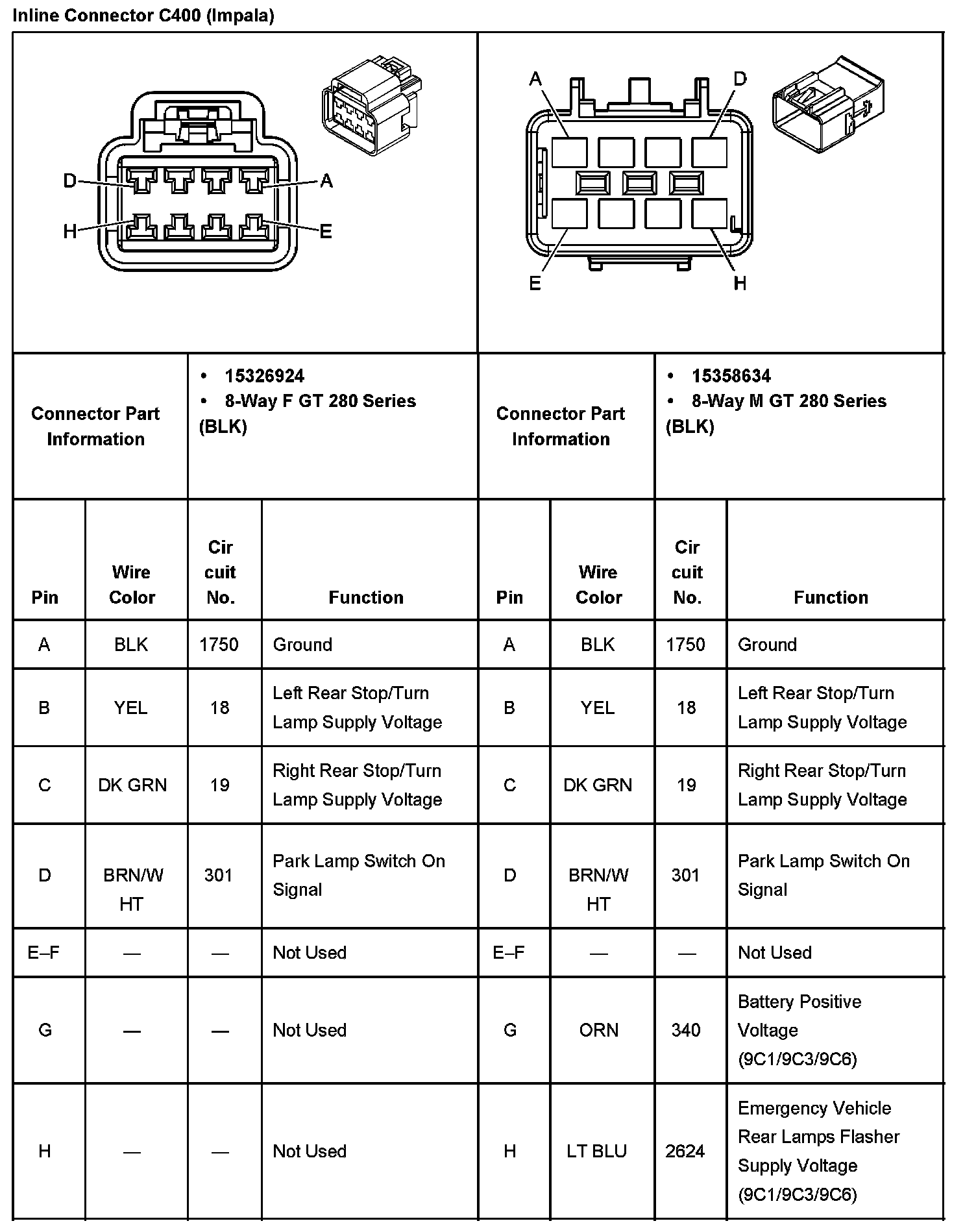

Inline Connector C400

Inline Connector C400:
