Inflatable Restraint Instrument Panel Module Replacement

REMOVAL PROCEDURE




1. Disable the SIR system. Refer to SIR Disabling and Enabling Zone 5.

CAUTION:
- Refer to SIR Caution in Service Precautions.
- Refer to SIR Inflator Module Handling and Storage Caution in Service Precautions.

2. Remove the I/P storage compartment.

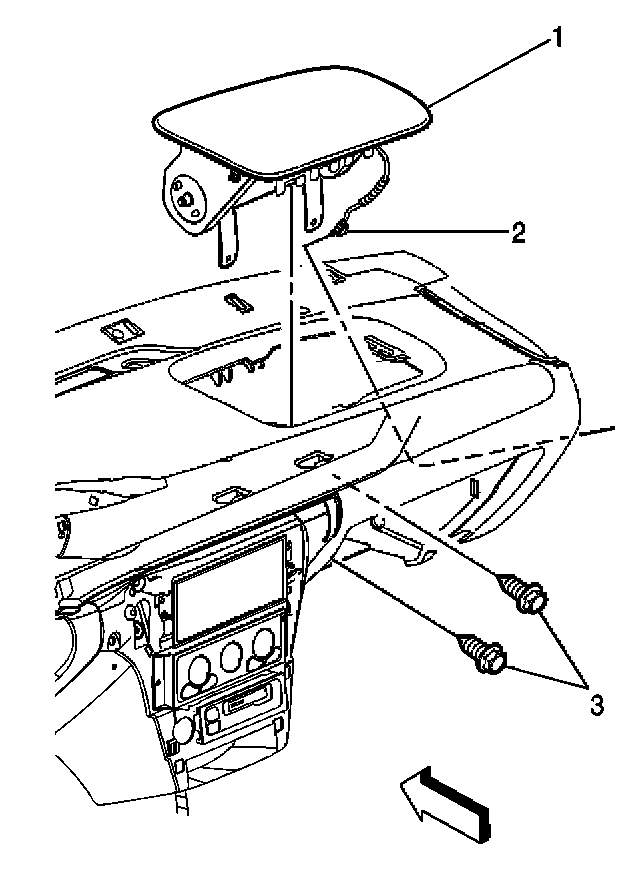

3. Remove the mounting fasteners (3) from the inflatable restraint I/P module.
4. Disconnect and remove the electrical harness (2) at the bussed electrical center passenger side.
5. Remove the inflatable restraint I/P module (1) from the vehicle.
6. Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflator Module Handling and Scrapping.

INSTALLATION PROCEDURE

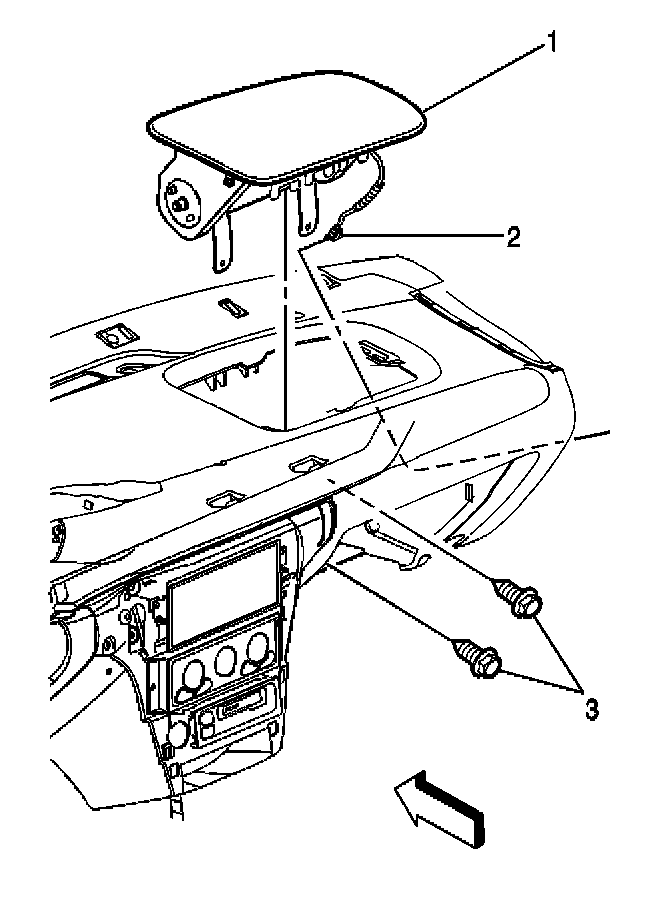

1. Install the inflatable restraint I/P module to the cross-car beam (1).
2. Install the mounting fasteners (3) to the inflatable restraint I/P module.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the fasteners to 10 N.m (89 lb in).

Use hand tools only in order to achieve fastener torque. This will prevent stripping of the replacement fastener.

3. Install and connect the electrical harness (2) at the bussed electrical center passenger side.
4. Install the I/P storage compartment.
5. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 5.
