Home >> Chevrolet >> 2004 >> Aveo L4-1.6L VIN 6 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fog/Driving Lamp >> System Diagram >> Fog Lamp - Left Front

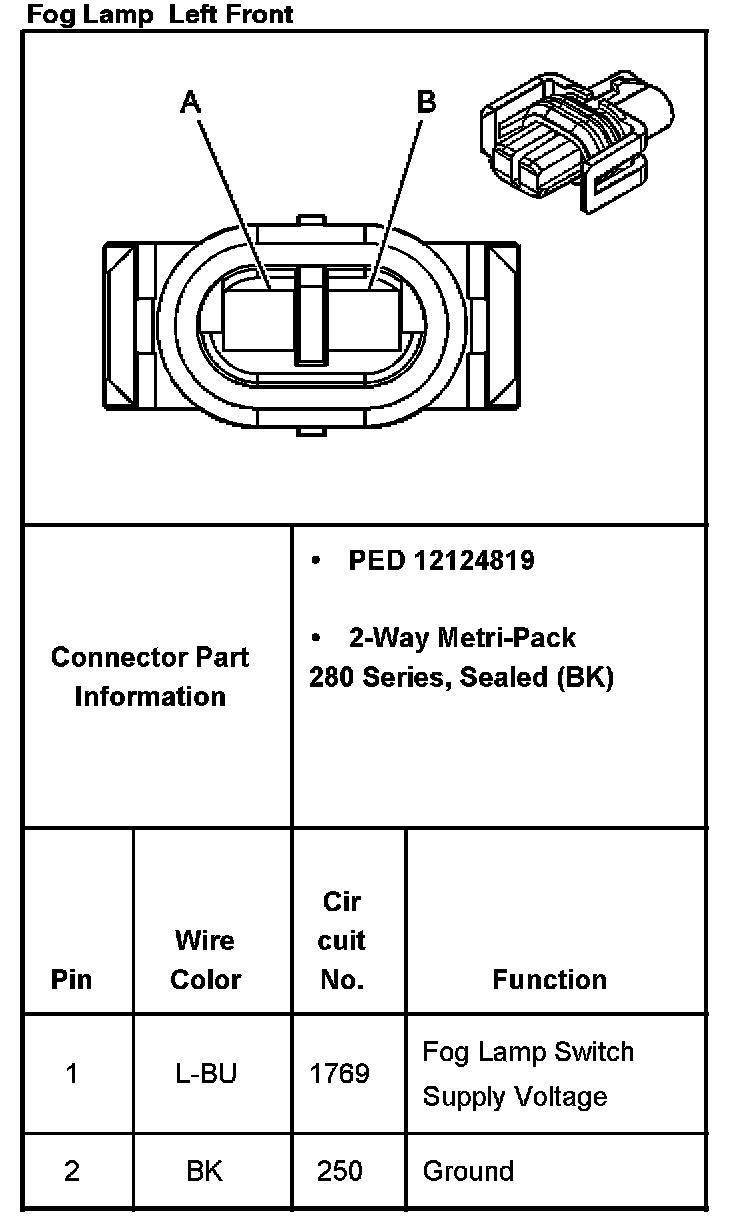

Fog Lamp - Left Front

Fog Lamp - Left Front:
