Notchback

TURN SIGNAL LAMP REPLACEMENT (NOTCHBACK)

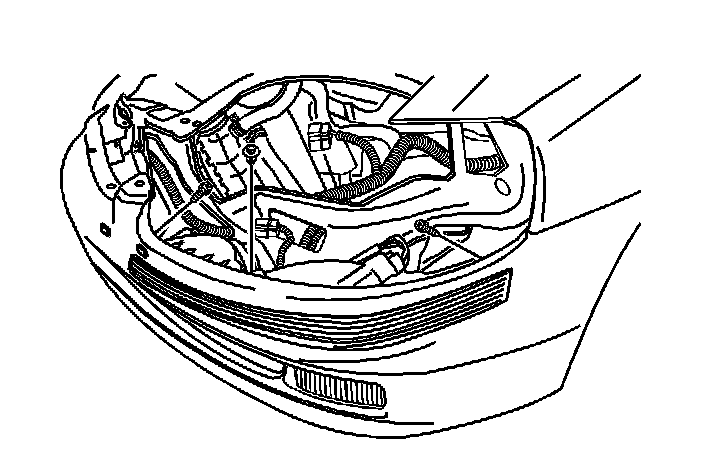

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.
Battery Disconnect Caution







1. Disconnect the negative battery cable.
2. Remove the headlamp.
3. Remove the screws and the turn signal lamp assembly.
4. Disconnect the electrical connector.
5. Remove the bulb.

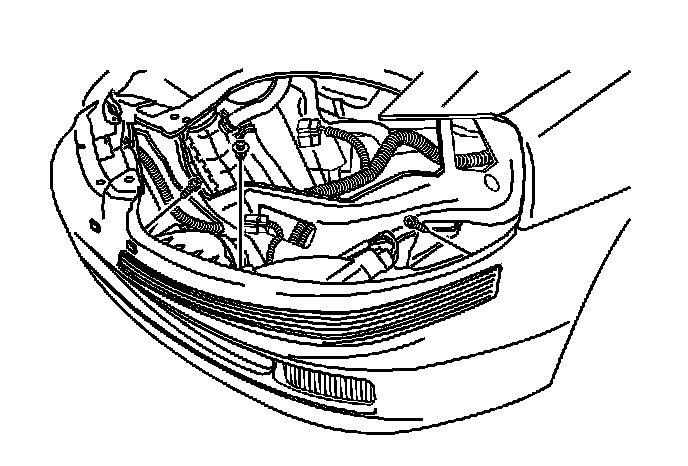

INSTALLATION PROCEDURE







1. Install the bulb.
2. Connect the electrical connector.
3. Install the turn signal lamp assembly with the screws.
4. Install the headlamp.
5. Connect the negative battery cable.
