Hazard Warning Switch: Service and Repair
HAZARD WARNING SWITCH REPLACEMENTREMOVAL PROCEDURE
1. Disable the SIR system. Refer to SIR Disabling and Enabling Zone 3 and SIR Disabling and Enabling Zone 5 in Restraint Systems.
2. Remove the instrument panel (I/P) cluster trim plate from the I/P carrier.
3. Disconnect the dimmer switch electrical connector if required.
4. Disconnect the electrical connector from the hazard warning switch.

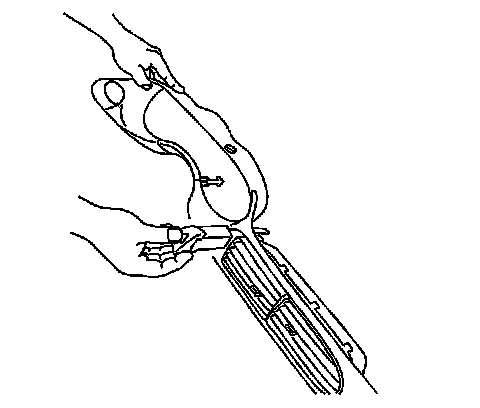

5. With a small flat-bladed tool release the retaining tabs for the hazard warning switch.
6. From the back side of the I/P cluster trim plate, push outward on the hazard warning switch. This will remove the switch from the I/P cluster trim plate.
INSTALLATION PROCEDURE
1. Align the hazard warning switch to the opening in the I/P cluster trim plate.
2. Push inward on the hazard warning switch until fully seated into I/P cluster trim plate.
3. Connect the electrical connector to the hazard warning switch.
4. Connect the dimmer switch electrical connector if required.
5. Install the I/P cluster trim plate to the I/P carrier.
6. Enable the SIR. Refer to SIR Disabling and Enabling Zone 3 and SIR Disabling and Enabling Zone 5 in Restraint Systems.
