SEAT BELT BUCKLE REPLACEMENT - FRONT

REMOVAL PROCEDURE
1. Position the driver seat back in order to access seat belt side buckle bolt.

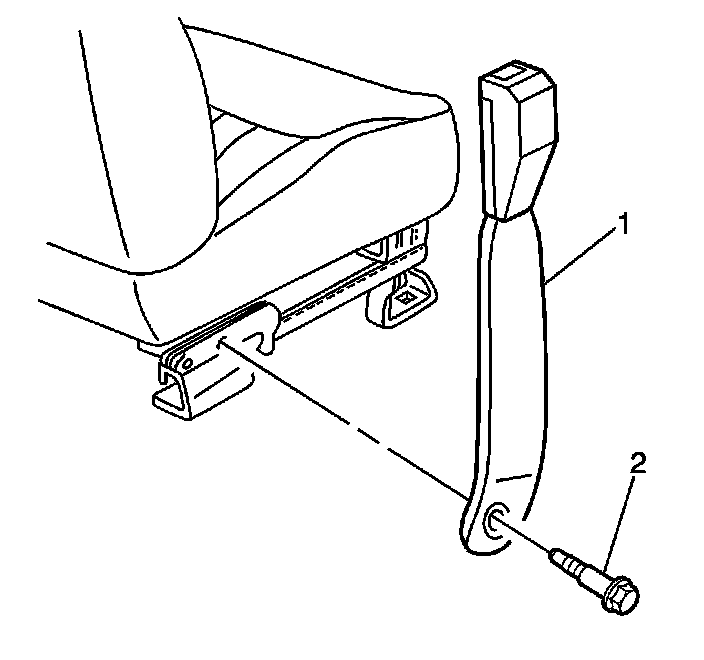

2. Remove the seat belt buckle bolt (2).
3. Remove the seat belt buckle (1) from the seat track.

INSTALLATION PROCEDURE




1. Install the seat belt buckle (1) to the seat track.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the seat belt buckle bolt (2).

Tighten the bolt to 48 N.m (35 lb ft).

3. Return the front bucket seat back to the original position.
