Seat Belt Latch: Service and Repair
SEAT BELT LATCH REPLACEMENT - CENTER REARREMOVAL PROCEDURE
1. Remove the rear seat cushion.

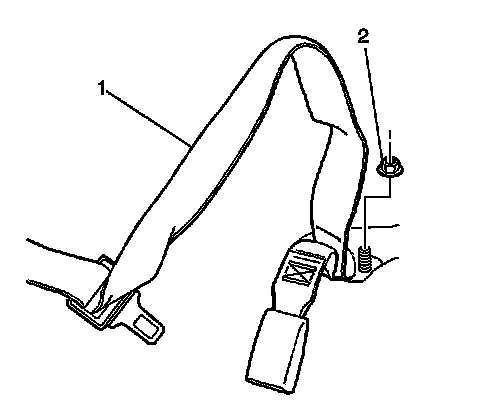

2. Remove the anchor bolt (2) from the rear center latch belt (1).
3. Remove the center latch belt (1) from the vehicle.
INSTALLATION PROCEDURE
1. Install the rear center latch belt (1) into the vehicle.
NOTE: Refer to Fastener Notice in Service Precautions.
2. Install the rear seat anchor bolt (2) to the rear center latch belt (1).
Tighten the bolt to 50 N.m (37 lb ft).
3. Install the rear seat cushion.
