Front
SEAT BELT RETRACTOR REPLACEMENT - FRONTREMOVAL PROCEDURE
1. Remove the trim panel from the lower center pillar.

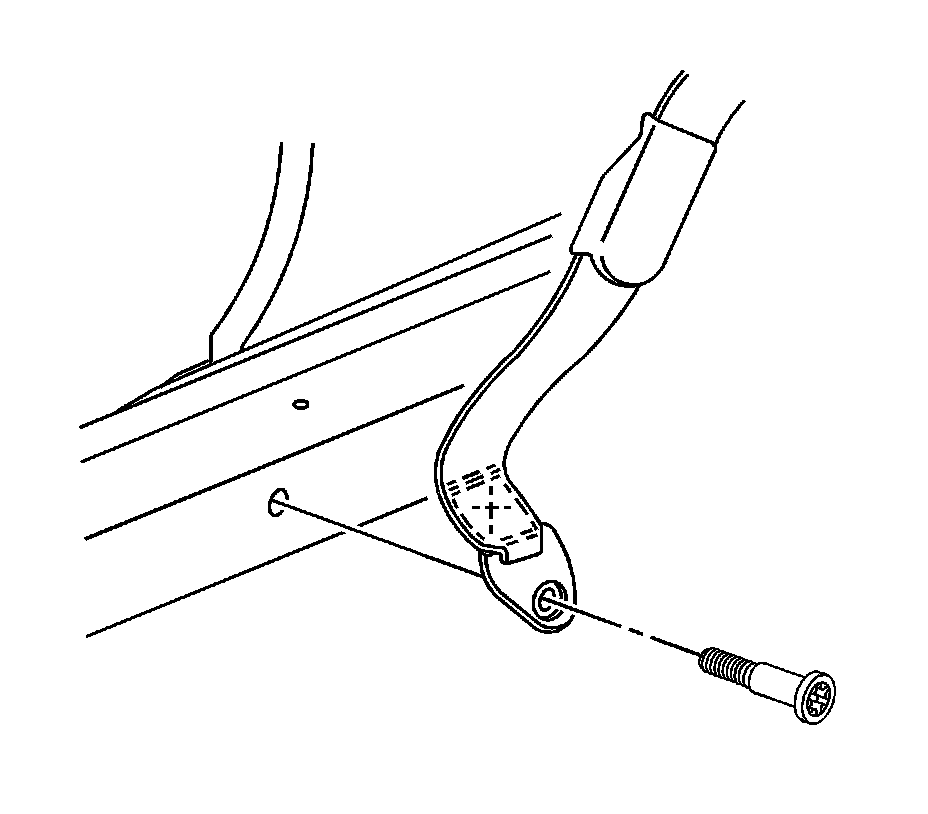

2. Remove the anchor bolt from the front seat belt.

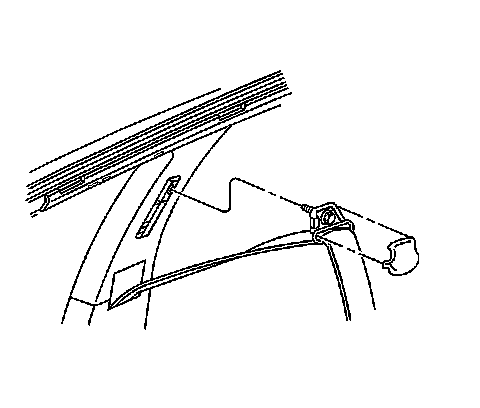

3. Remove the shoulder belt guide cover.
4. Remove the shoulder belt guide bolt.
5. Remove the shoulder belt guide.

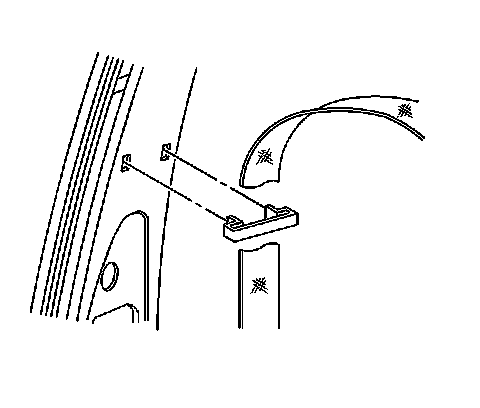

6. Remove the seat belt guide clip. Squeeze the guide clip from both sides in order to release the retainers.

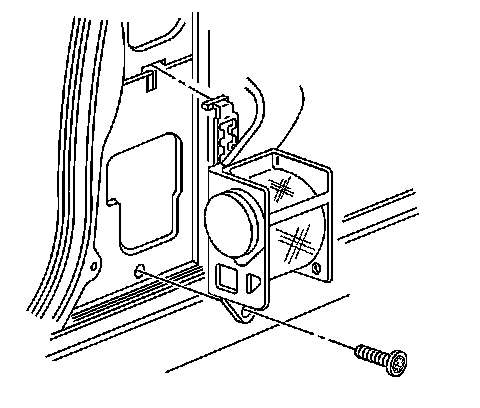

7. Remove the seat belt retractor bolt.
8. Pull the retractor upward in order to disengage the retractor.

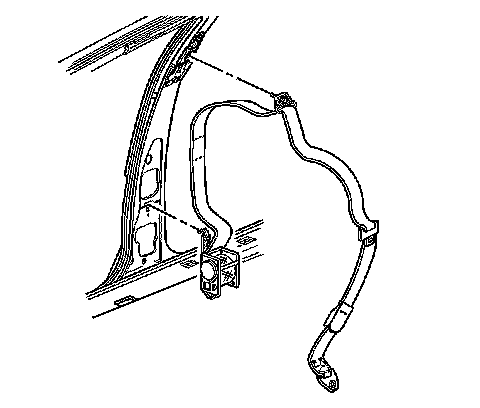

9. Remove the seat belt retractor assembly.
INSTALLATION PROCEDURE
IMPORTANT: Remove any twists in the seat belt webbing before final assembly.
1. Install the seat belt retractor assembly.
2. Insert the top of the retractor into the mounting slots and pull downward.
NOTE: Refer to Fastener Notice in Service Precautions.
3. Install the seat belt retractor bolt.
Tighten the bolt to 41 N.m (30 lb ft).
4. Install the seat belt guide clip. Ensure that the unit locks into position.
5. Install the shoulder belt guide.
6. Install the shoulder belt guide bolt.
Tighten the bolt to 41 N.m (30 lb ft).
7. Install the seat belt anchor bolt.
Tighten the bolt to 41 N.m (30 lb ft).
8. Install the shoulder belt guide cover.
9. Inspect the seat belt assembly for proper operation.
10. Install the trim panel to the lower center pillar.
