Power Steering Pump: Service and Repair

Power Steering Pump Replacement (2.2 (L61)

Removal Procedure
1. Remove the upper air cleaner and duct.
2. Remove the EVAP canister purge valve.
3. Remove the power steering hoses from the power steering pump. Refer to the following procedures:
^ Power Steering Pressure Hose Replacement
^ Power Steering Return Hose Replacement

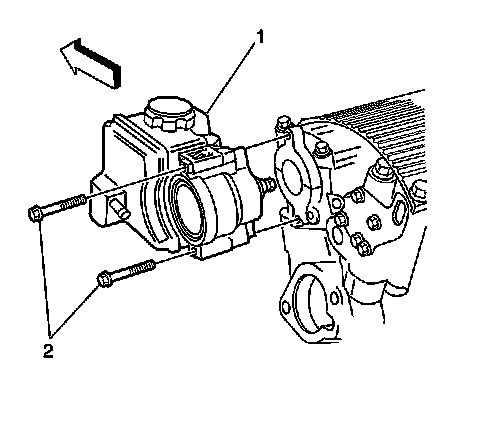

4. Remove the power steering pump mounting bolts (2).
5. Remove the power steering pump (1) from the engine.

Installation Procedure





1. Install the power steering pump (1) to the engine.

2. Notice:
Refer to Fastener Notice in Service Precautions.

Install the power steering pump mounting bolts (2).
^ Tighten the power steering pump bolts (2) to 26 Nm (19 ft. lbs.).
3. Install the power steering hoses to the power steering pump (1). Refer to the following procedures:
^ Power Steering Pressure Hose Replacement
^ Power Steering Return Hose Replacement
4. Install the EVAP canister purge valve.
5. Install the upper air cleaner and duct.
6. Fill the power steering pump with power steering fluid.
7. Bleed the air from the power steering system.
