Rear Side Door Window Replacement

Window Replacement - Rear Door

Removal Procedure

1. Place the rear door window assembly to the down position.
2. Remove the rear door trim panel.
3. Remove the rear door water deflector.

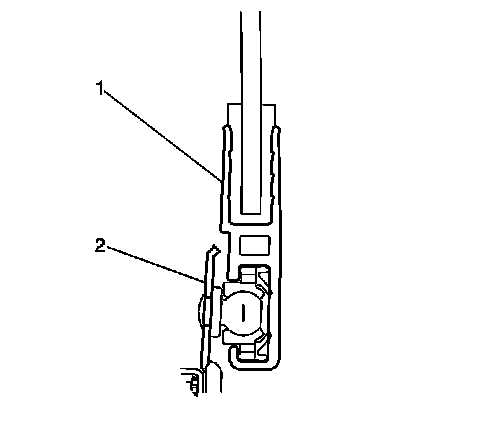

4. Disengage the glass sash regulator (2) from the rear side door window (1).
5. Remove the door window frame applique.

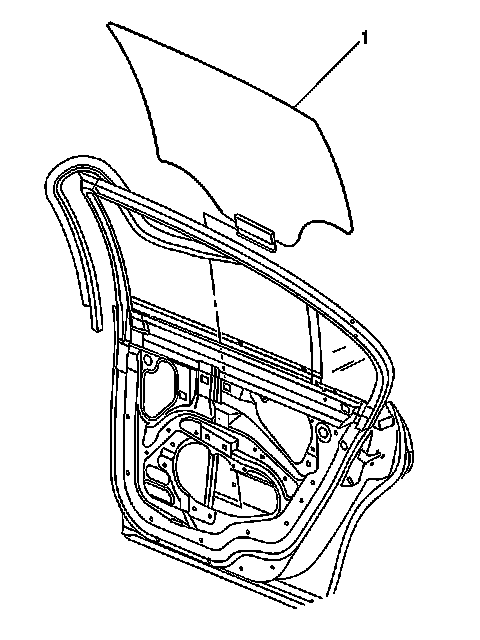

6. Remove the rear side door window (1).

Installation Procedure




1. Install the rear side door window (1).




2. Engage the glass sash regulator (2) to the rear side door window (1).
3. Install the rear door window frame applique.
4. Install the rear door water deflector.
