Antilock Brake System Schematics

Antilock Brake System Schematics

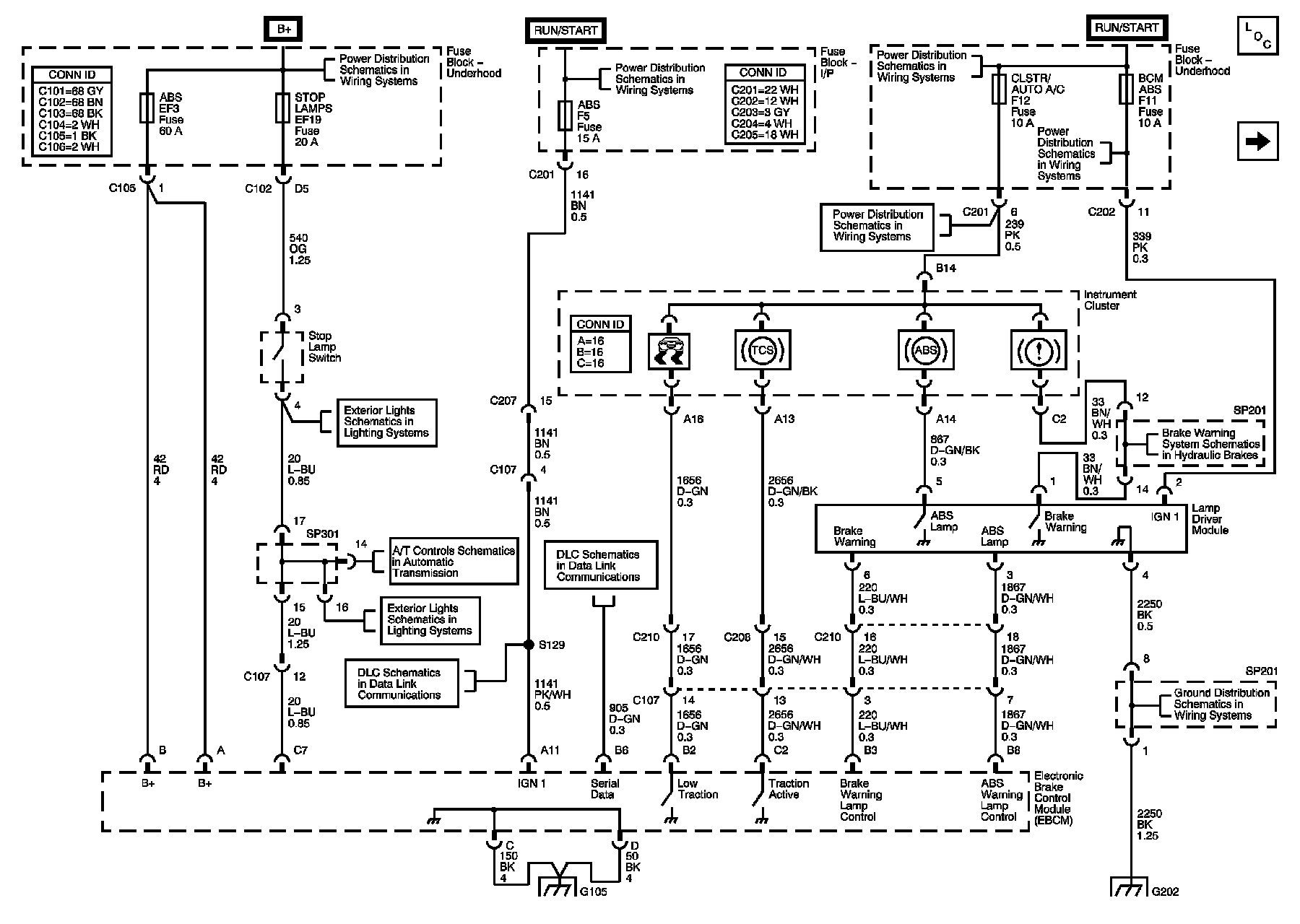

Power, Ground, Warning Lamps, Stop Lamp Switch

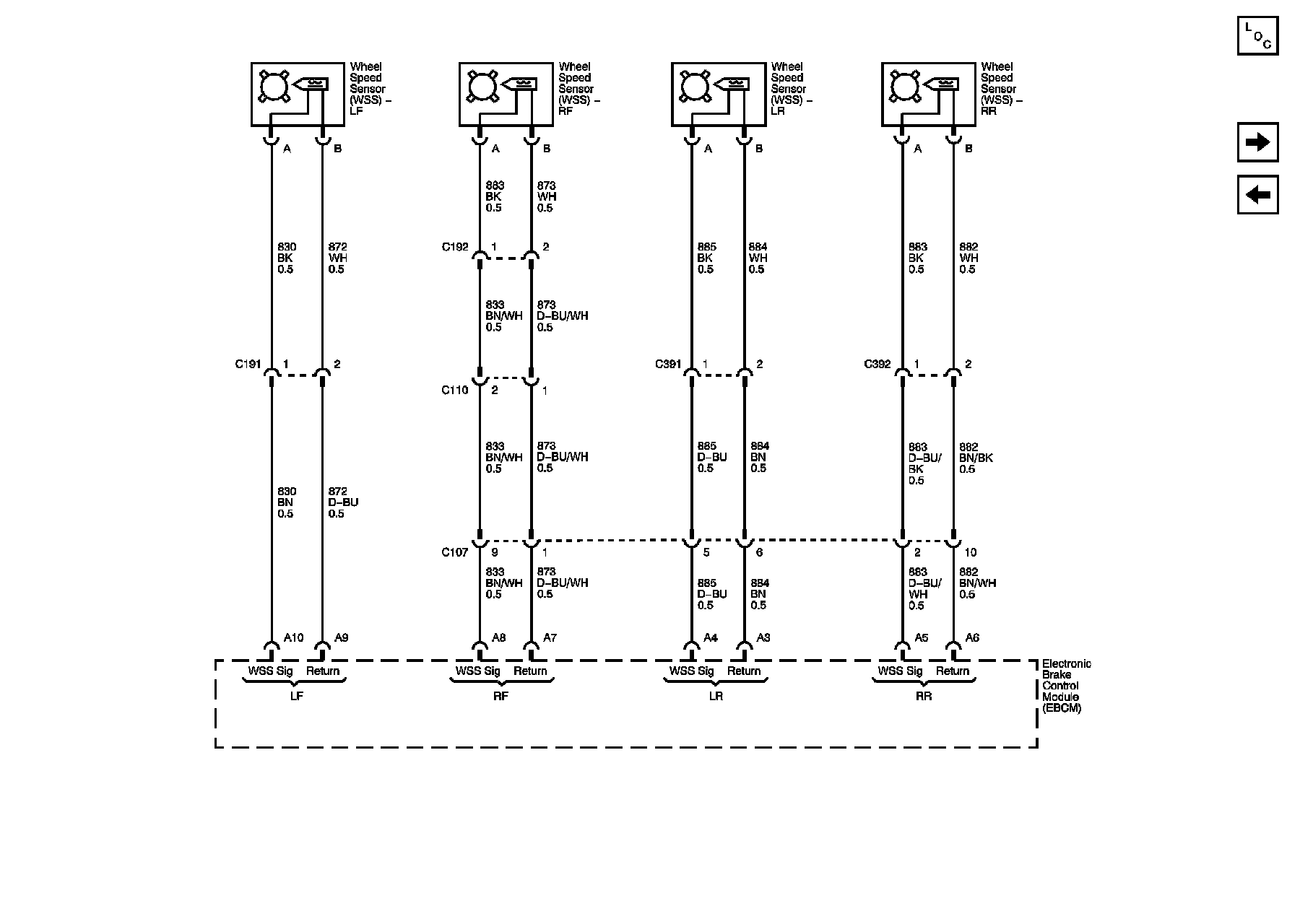

Wheel Speed Sensors, Electronic Brake Control Module (EBCM)

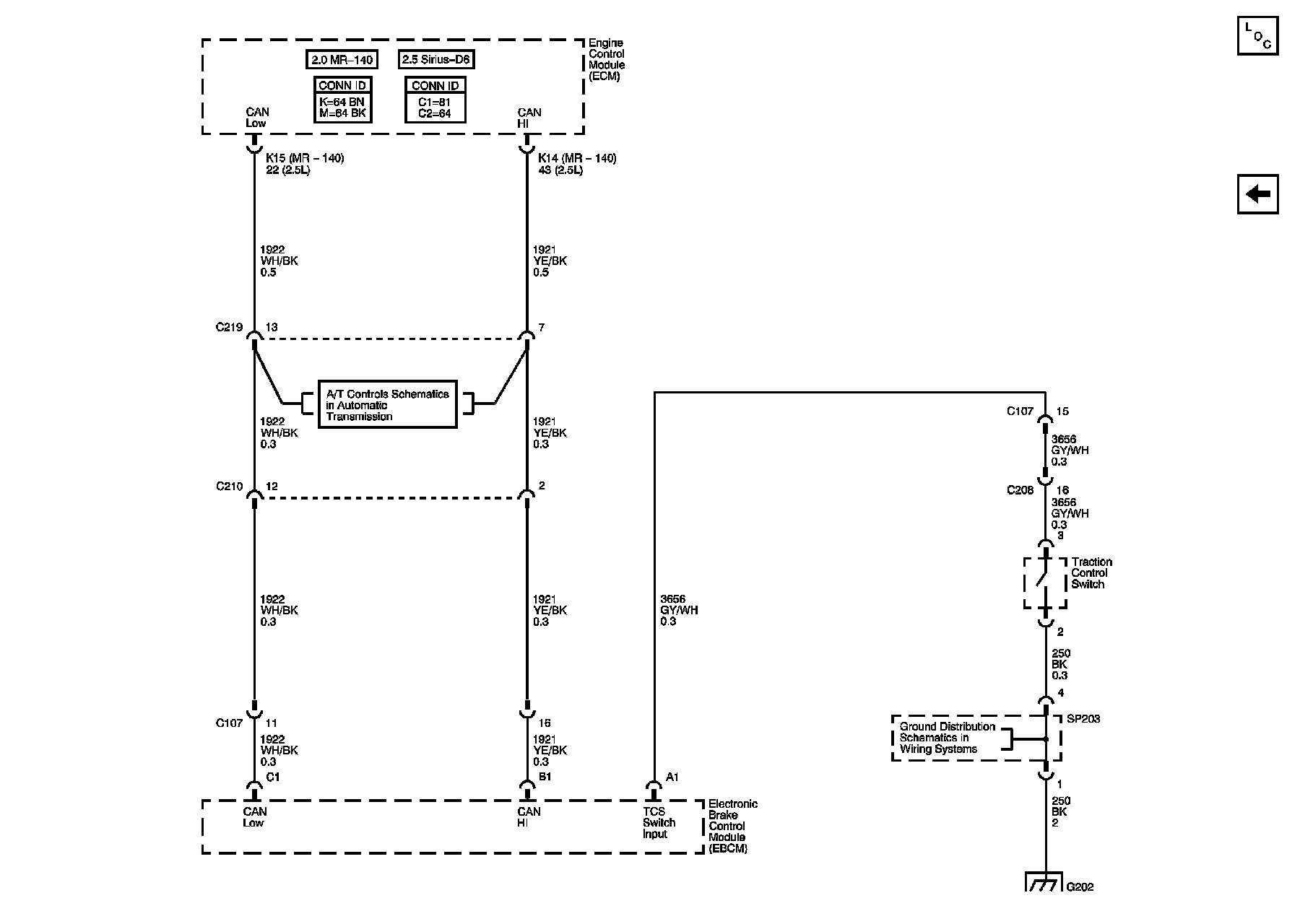

Traction Control System (TCS) Switch, Serial Data
