Rear Toe Adjustment

Rear Toe Adjustment




1. Perform a preliminary inspection before any attempt is made to change or correct the wheel alignment factors. Refer to Preliminary Alignment Inspection Preliminary Alignment Inspection.

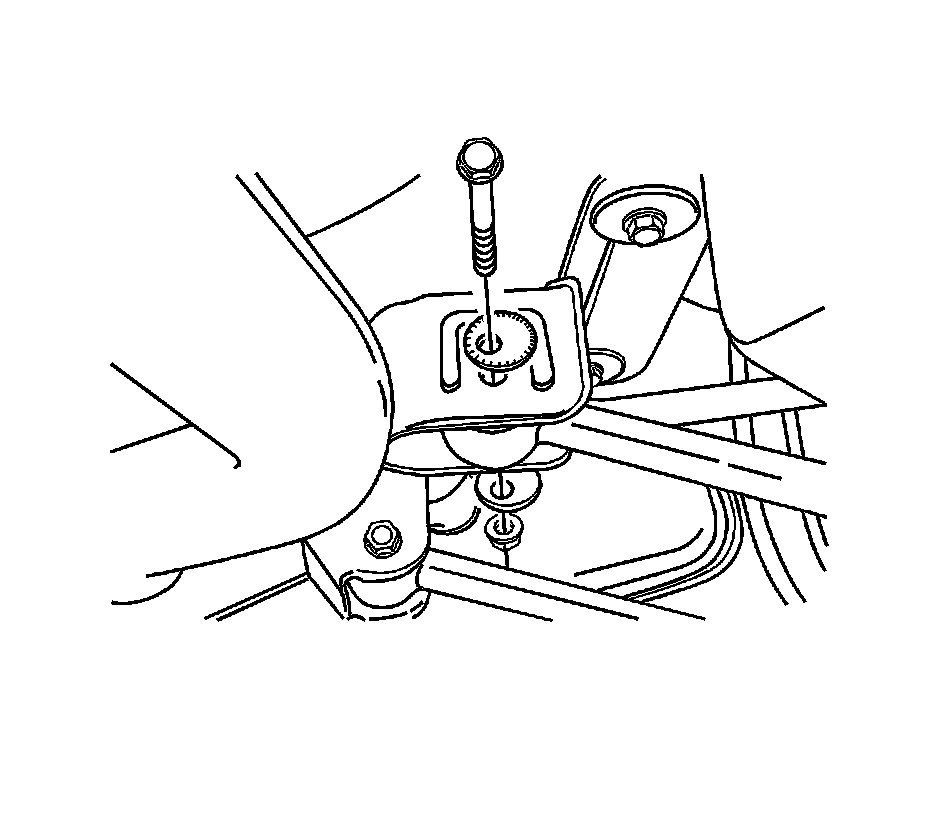

2. Loosen the front parallel link cam bolt to crossmember.





Notice: Refer to Fastener Notice Fastener Notice.

3. Install the front parallel link cam bolt.

Tighten the bolt to 40 Nm (30 lb ft).

4. Adjust the rear toe specification. Refer to Wheel Alignment Specifications [1][2]Alignment for preferred specifications.

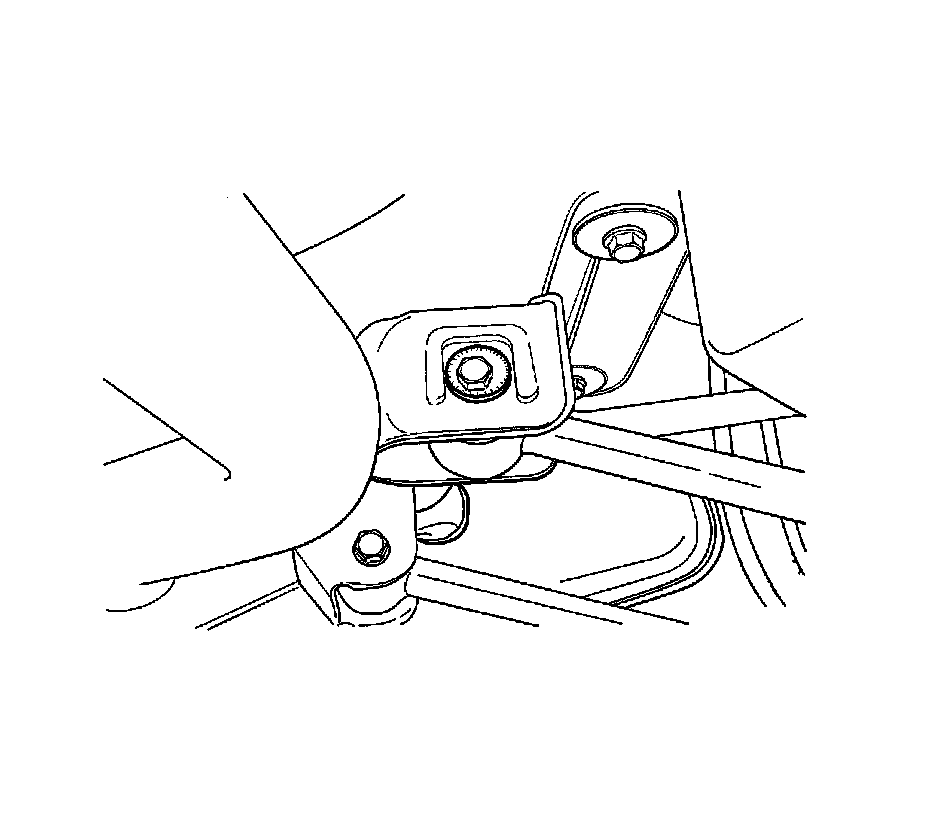

5. Tighten the front parallel link cam bolt.

Tighten the bolt to 80 Nm (59 lb ft).
