Electrical Diagrams
Intelligent Switching Unit Schematics

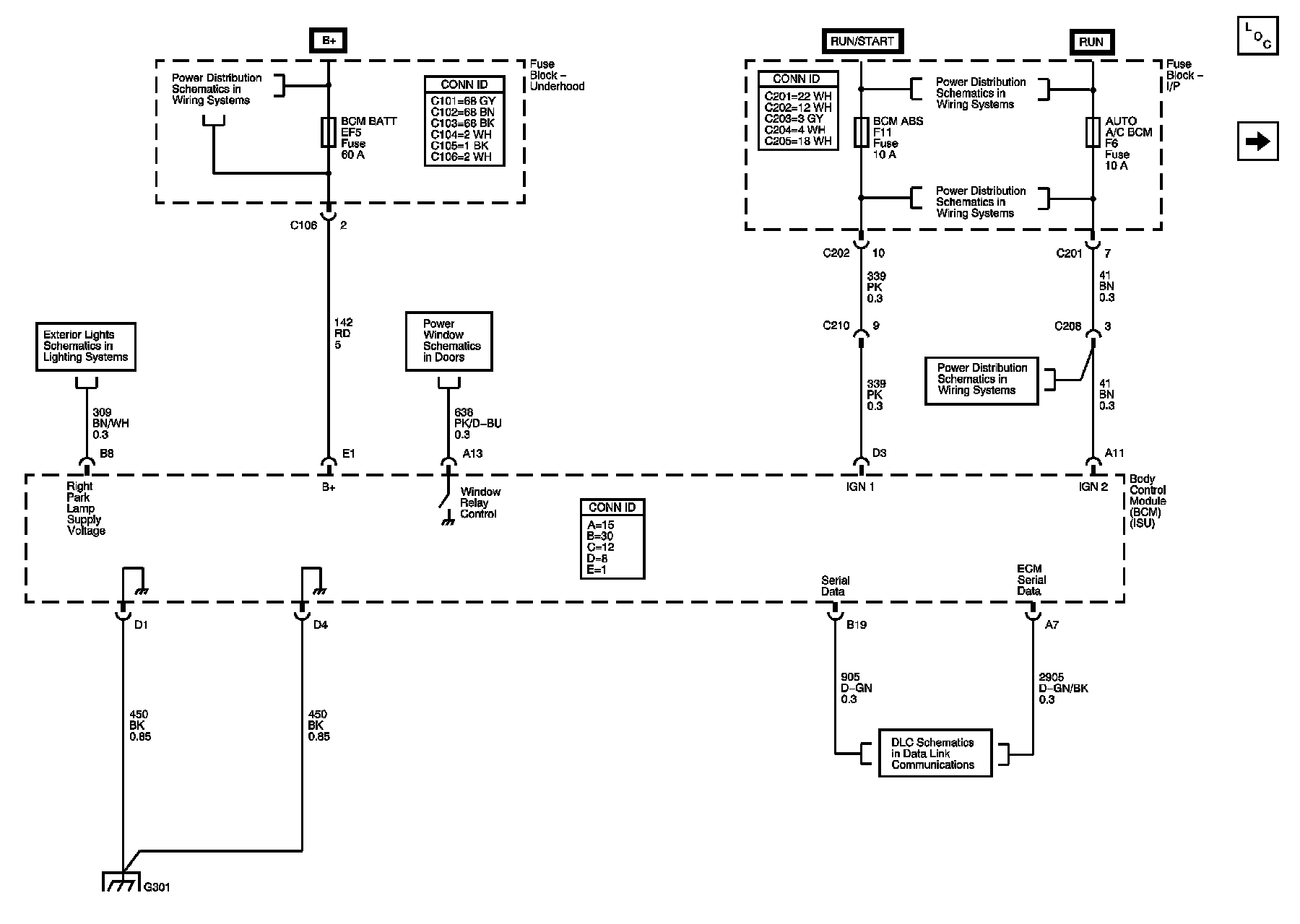

Power, Ground and DLC

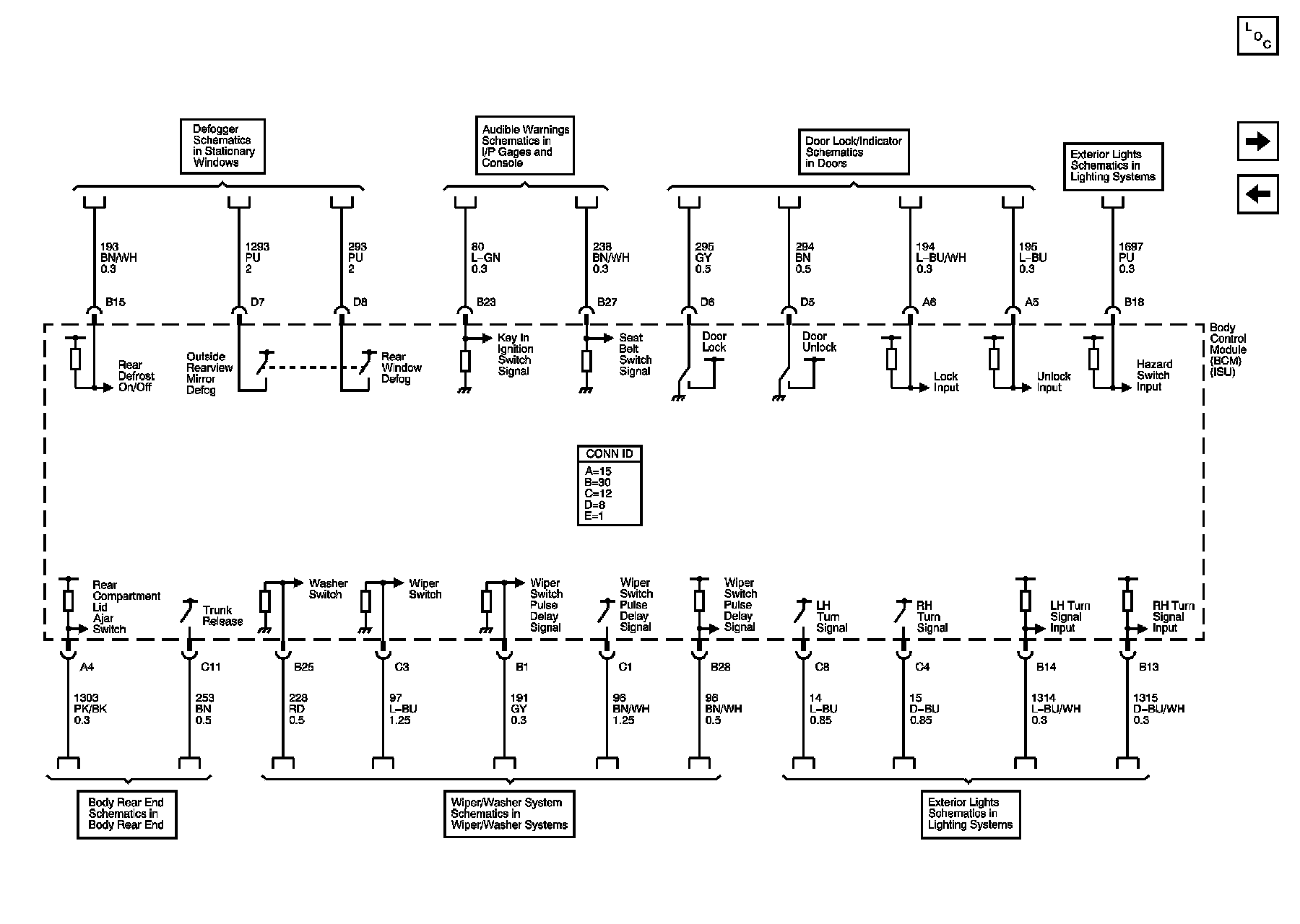

Rear Defogger, Audible Warnings, Door Lock, Exterior Lights, Trunk Release, and Wiper/Washer System References

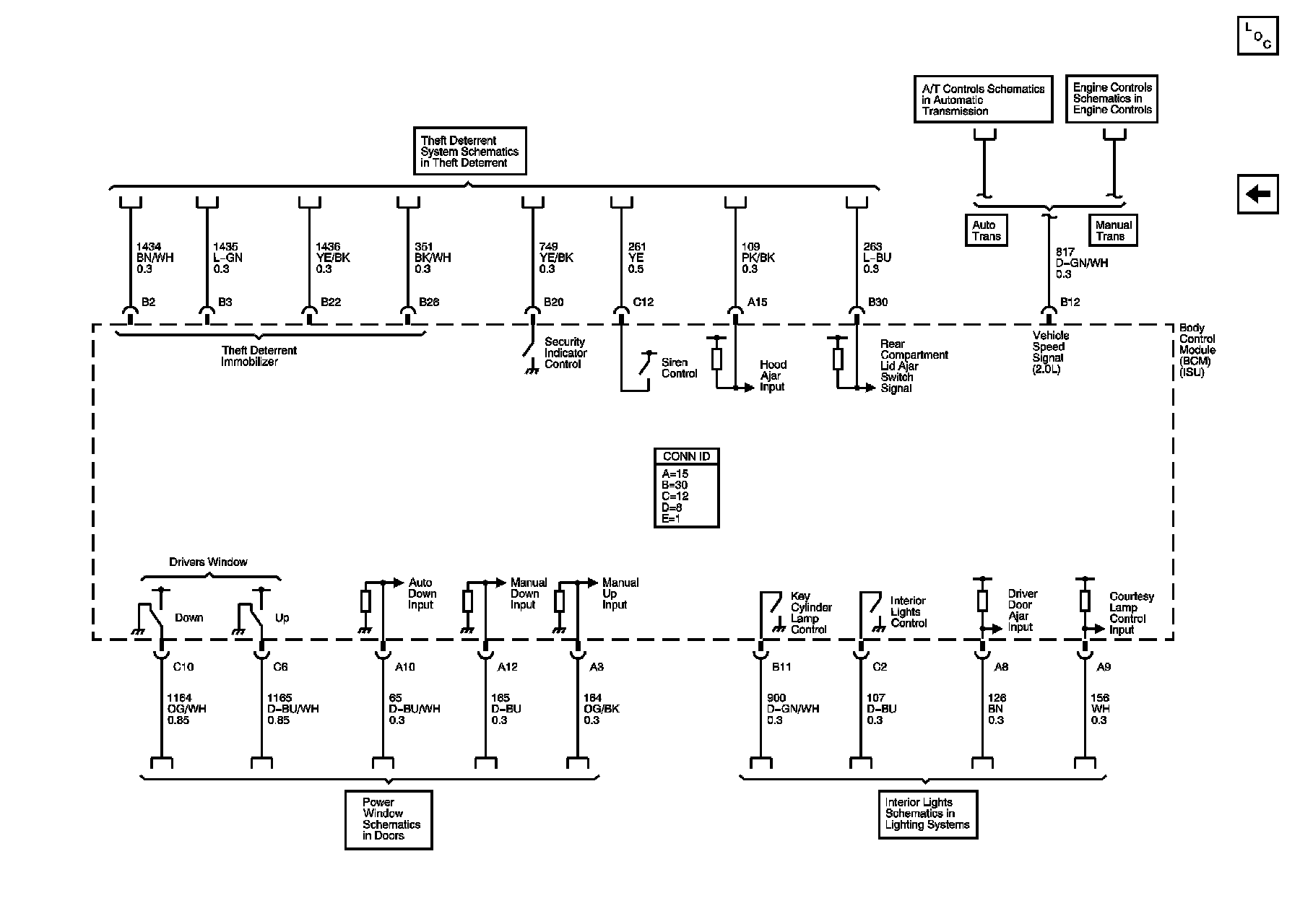

Theft Deterrent, Vehicle Speed, Power Window, and Interior Lights System References
