1. Shift Mechanism Removal

Shift Mechanism Removal

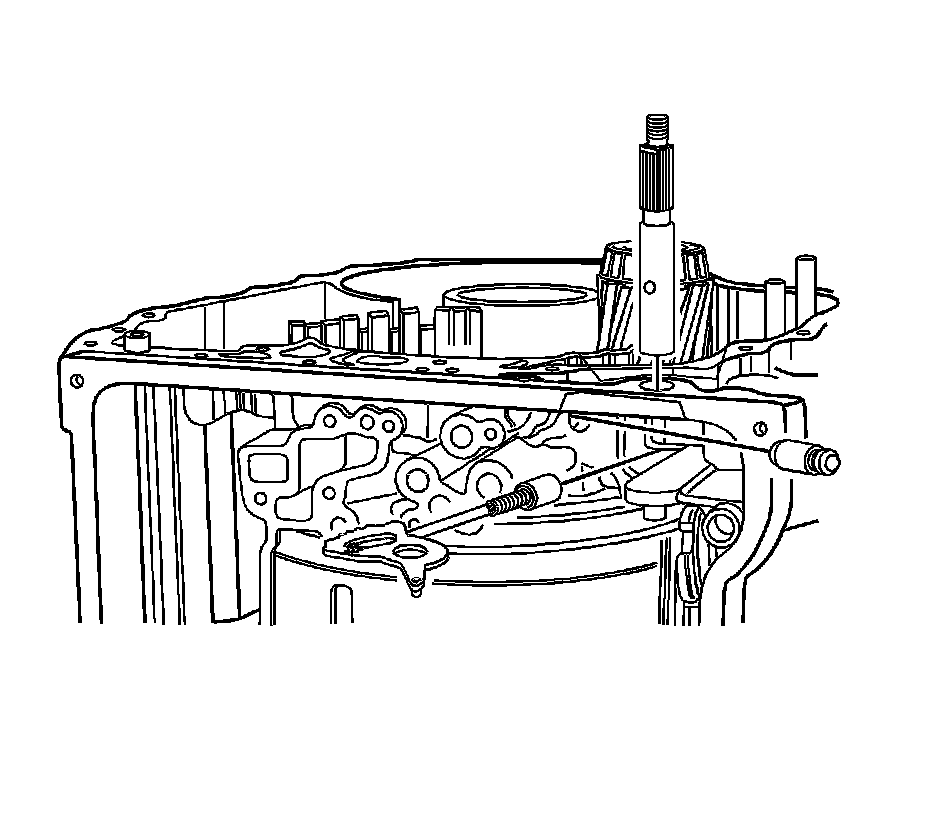

1. Remove the select shaft clamping sleeve.





Important: The shift mechanism consists of a select shaft, detent disc, connecting bar, and stop bush.

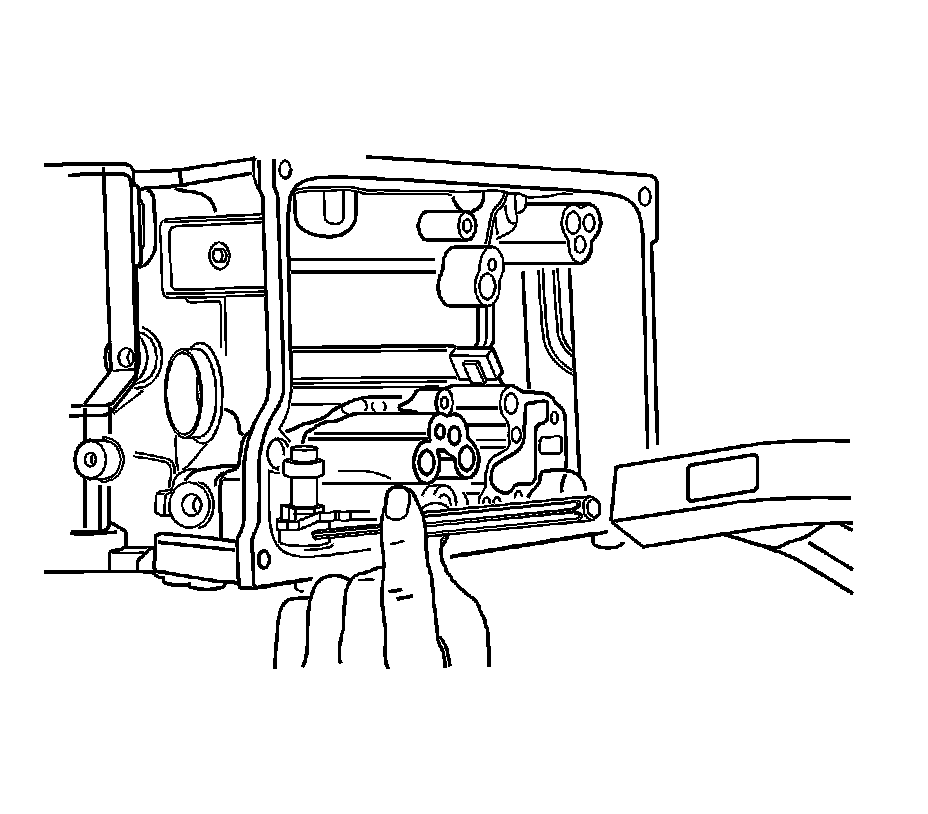

2. Remove the shift mechanism.
