25. Control Valve Body Assemble

Control Valve Body Assemble





Notice: Refer to Fastener Notice Fastener Notice.

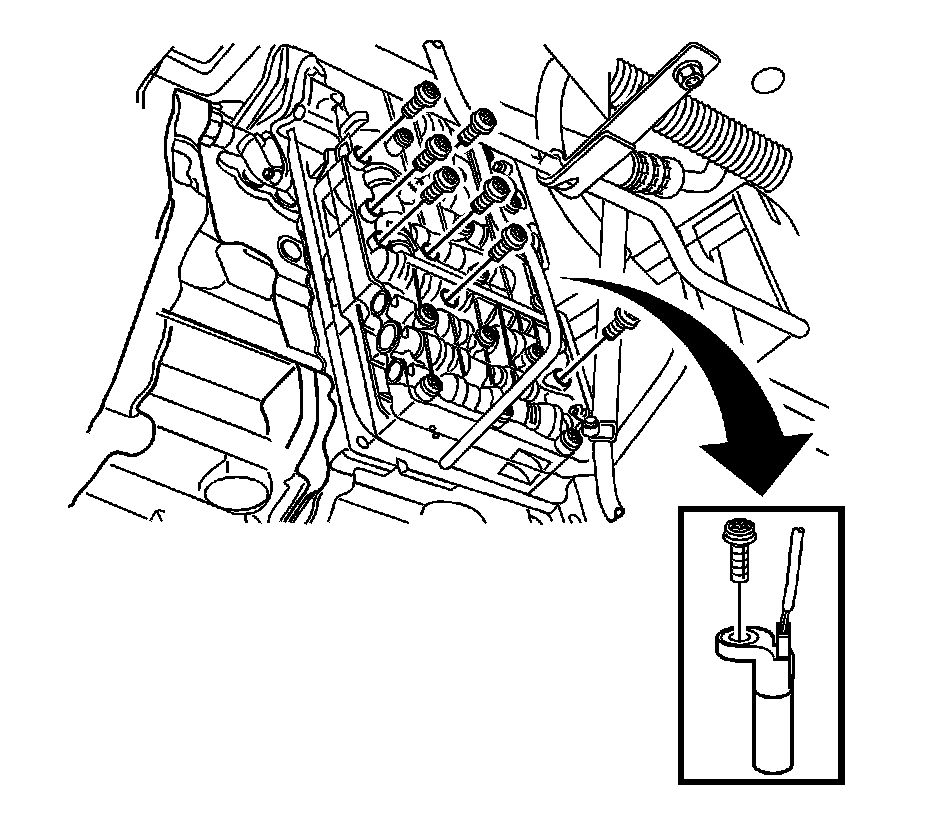

1. Install the control valve body and the bolts.

Tighten the bolts to 8 Nm (71 lb in).

2. Install the input speed sensor mounting bolt.

Tighten the bolt to 8 Nm (71 lb in).

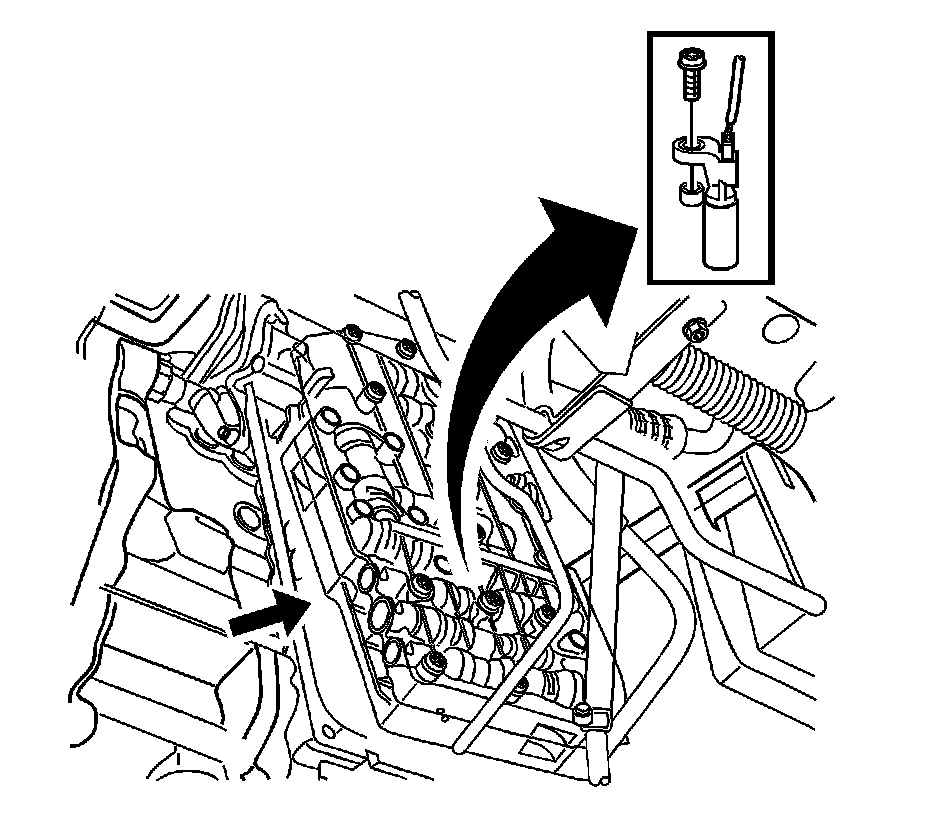

3. Install the output speed sensor mounting bolt.

Tighten the bolt to 6 Nm (53 lb in).

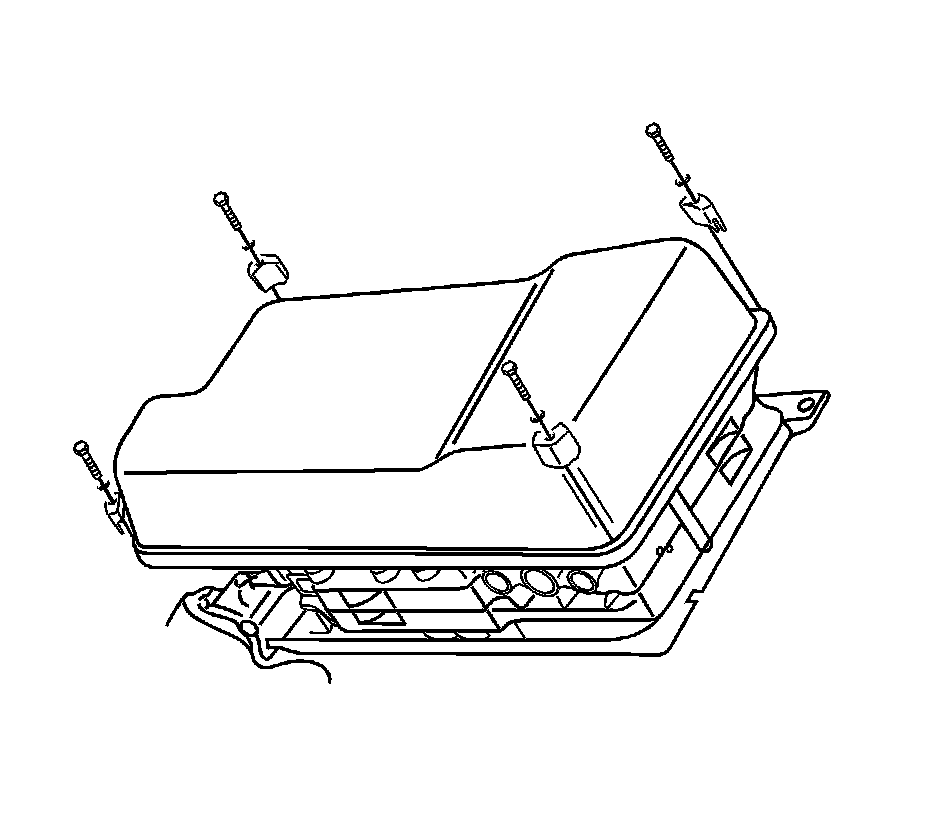

4. Install the oil pan and the oil pan gasket.

Tighten the oil pan bolts to 6 Nm (53 lb in).
