30. Planetary Gear Set Assemble

Planetary Gear Set Assemble

Caution: Refer to Safety Glasses Caution Safety Glasses Caution.

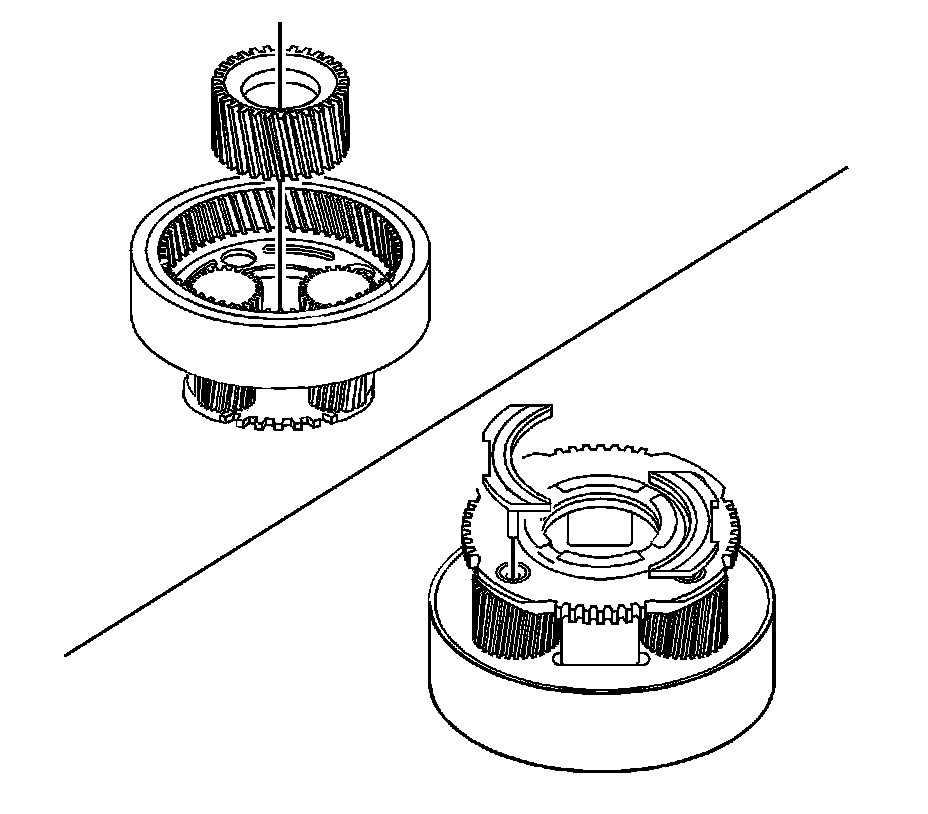

1. Install the oil trays and the front sun gear to the planetary gear set.

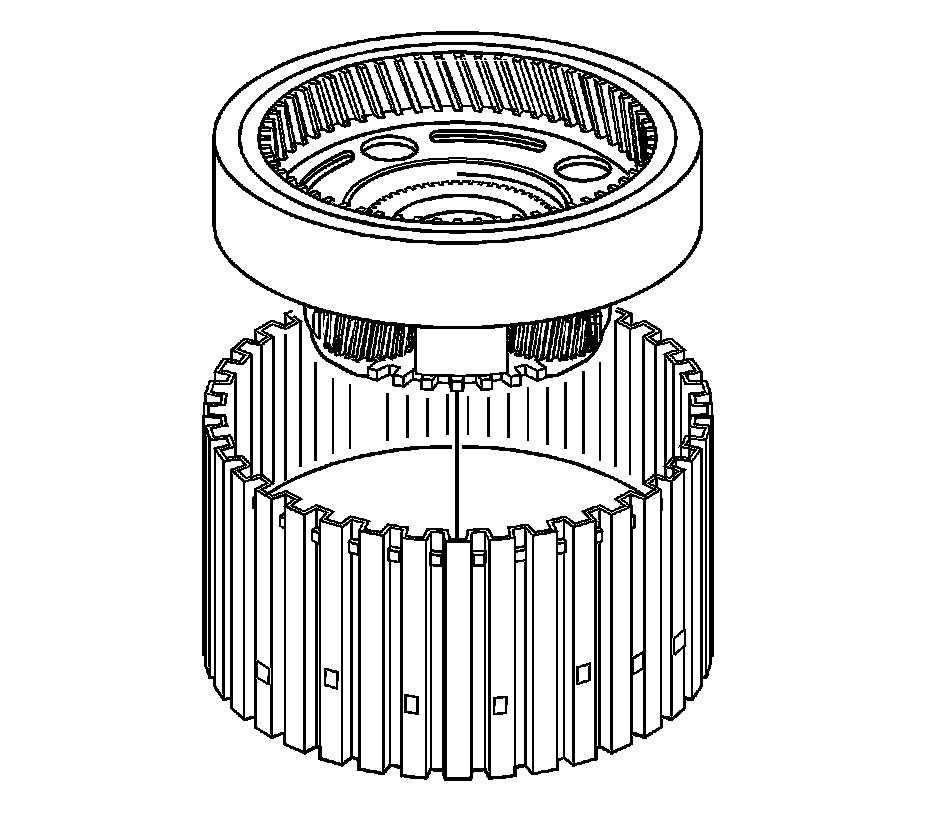

2. Install the front gear set with the rear ring gear, the front sun gear, and the oil trays.

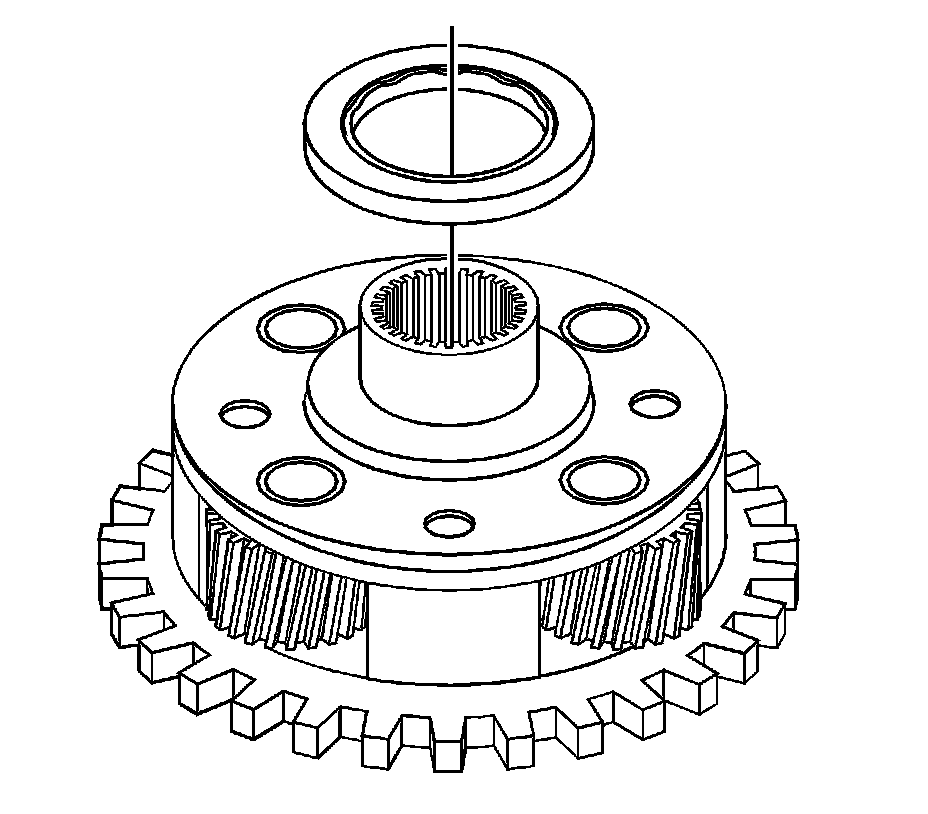

3. Install the axial needle bearing.




4. Install the rear planetary gear set.

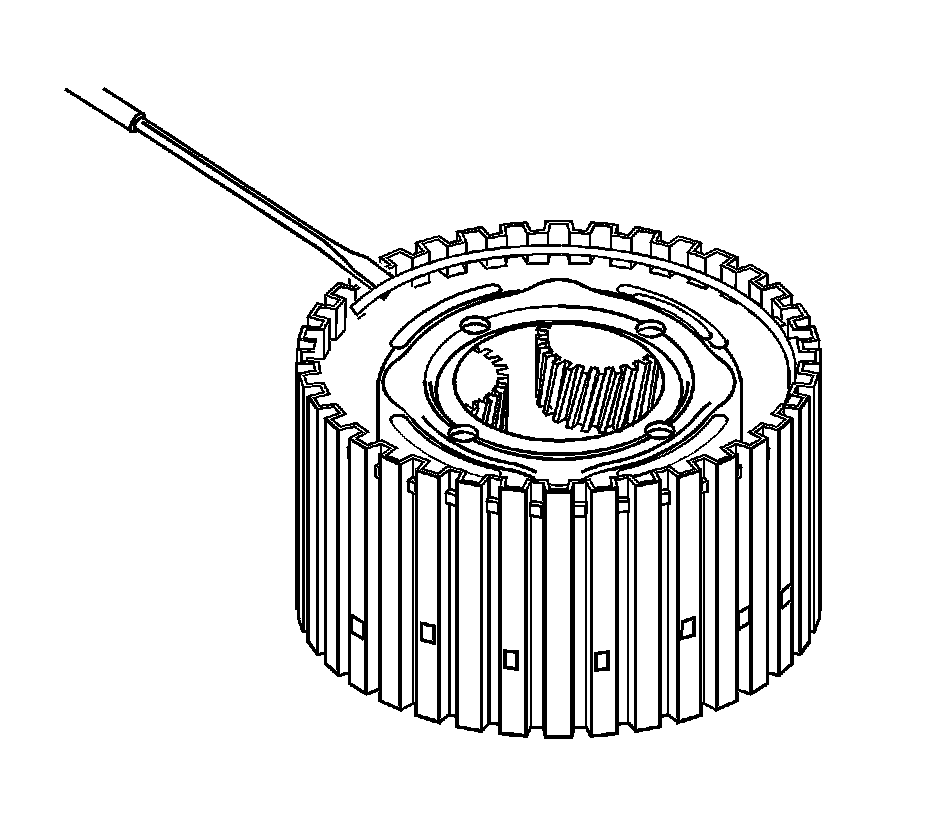

5. Install snap ring from the front ring gear.




6. Install the planetary gear set.

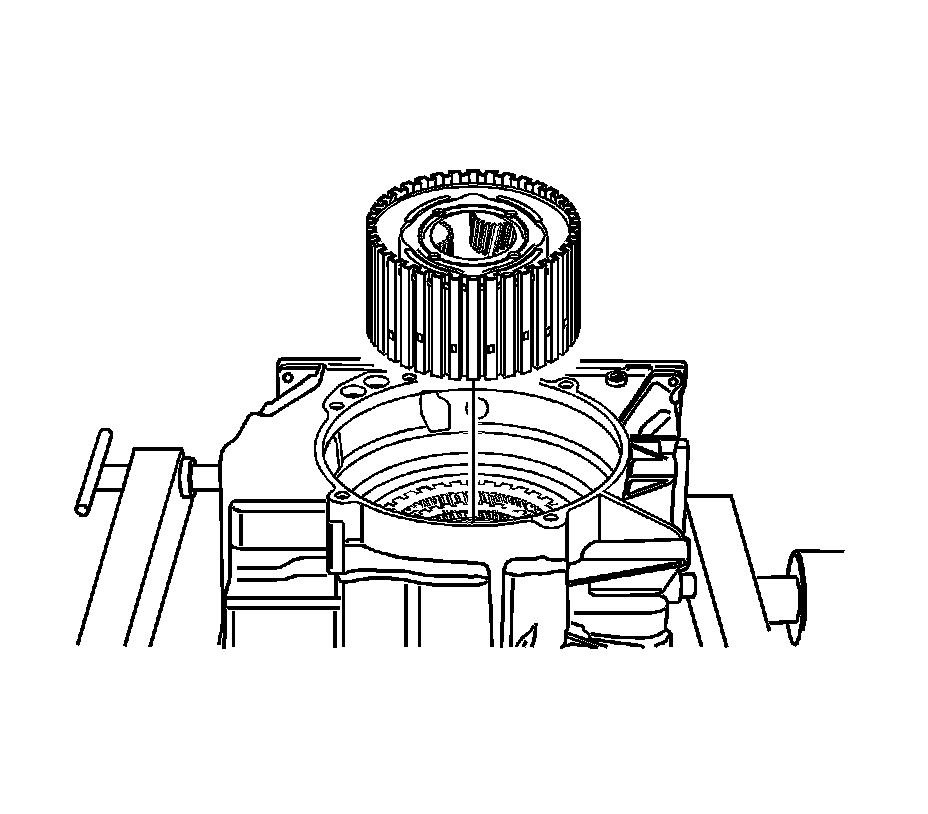

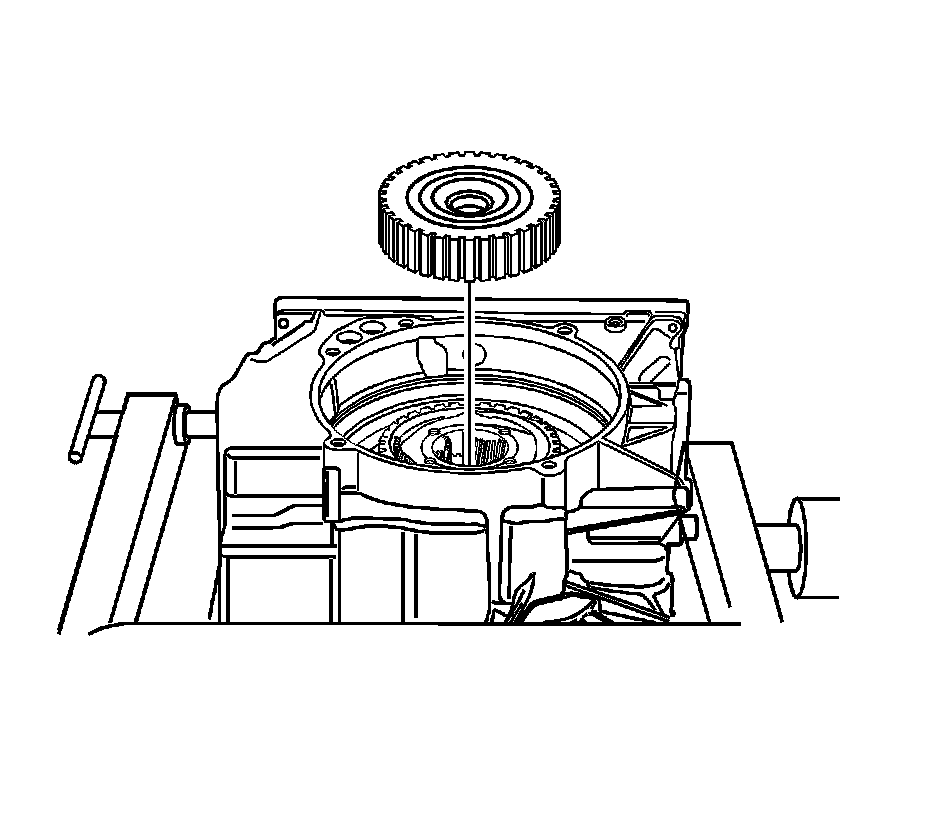

7. Install the rear sun gear.
8. Install the clutch B/E. Refer to Clutch B/E Assemble 28. Clutch B/E Assemble.
