Console Replacement - Front Floor

Console Replacement - Front Floor (Impala)

Removal Procedure

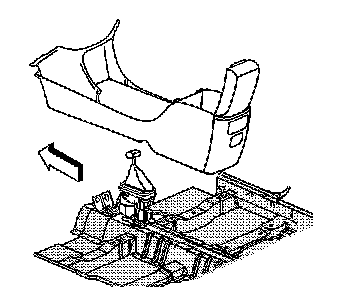

1. Remove the trim plate from the front floor console.
2. Remove the following front floor console bolts:

* Near the instrument panel (IP)
* At the transaxle shift control lever
* Under the mat in the rear bin

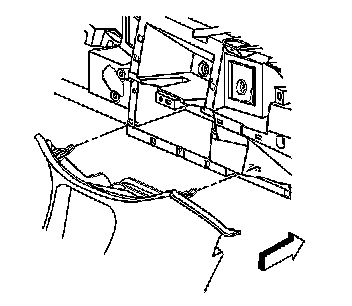

3. Pull the console rearward in order to disengage the clips from the IP.




4. Disconnect the electrical connectors.
5. Remove the front floor console.

Installation Procedure




1. Position the front floor console to the vehicle.
2. Connect the electrical connectors.




3. Install the front floor console. Engage the clips at the IP.

Notice: Refer to Fastener Notice in Service Precautions.

4. Install the following front floor console bolts:

* Near the instrument panel (IP)
* At the transaxle shift control lever
* Under the mat in the rear bin

Tighten the bolts to 12 N.m (106 lb in).

5. Install the trim plate to the front floor console.
