Stabilizer Bushing: Service and Repair

STABILIZER SHAFT INSULATOR REPLACEMENT

REMOVAL PROCEDURE
1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.
2. Remove the front tire and wheel assemblies.
3. Remove the stabilizer shaft from the vehicle.

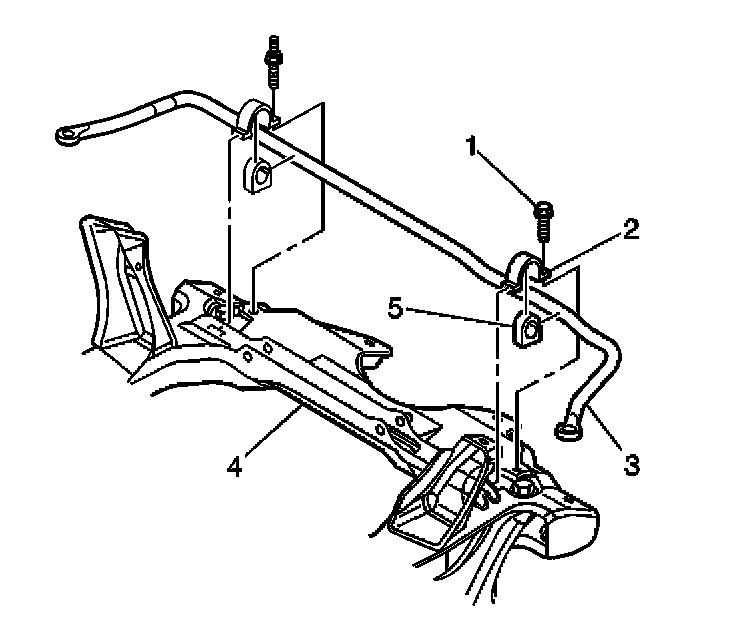

4. Remove the stabilizer shaft bushings (5) from the stabilizer shaft (3).

INSTALLATION PROCEDURE

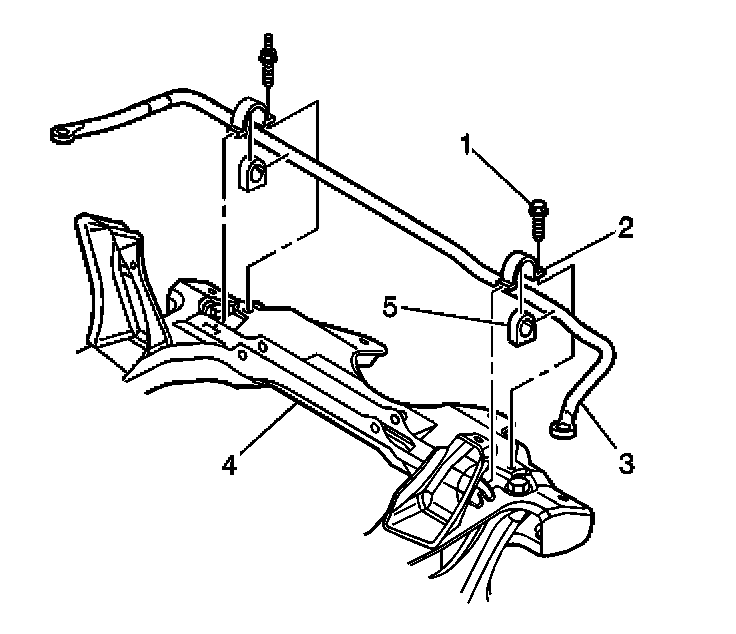

1. Install the stabilizer shaft bushings (5) to the stabilizer shaft (3).
2. Install the stabilizer shaft to the vehicle.
3. Install the tire and wheel assemblies.
4. Lower the vehicle.
